Small Filament Spool V2 | Leftovers or Samples

🐻 Small Filament Spool V2 - For Leftover or Sample Filaments 🐻

This spool is the perfect solution for organizing leftover or sample filaments. With a capacity of up to 100 grams, it’s compact, efficient, and user-friendly. The spool is designed to screw together, with custom print friendly threads that ensure smooth assembly and a secure fit.

Dimensions:

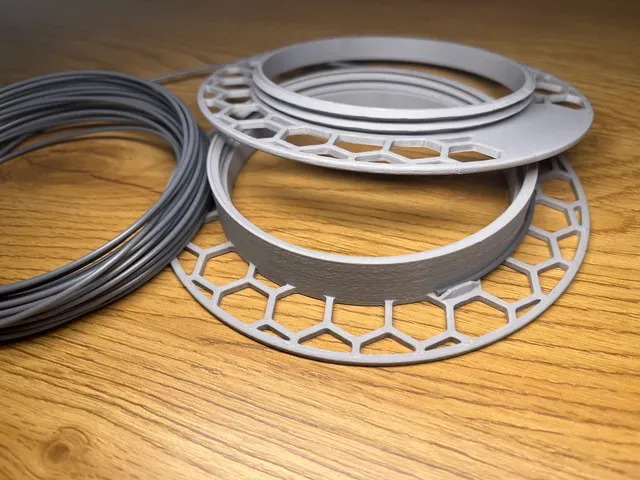

- Traverse: 16mm - Flange Diameter: 150mm - Barrel Diameter: 100mm The spool consists of two parts:

- Bottom: Comes in two versions—one with a label area for easy identification and one without for a sleek, minimalist design. - Top: Includes a built-in filament holder for quick and convenient spool winding. Both parts are pre-oriented for easy printing, and the flanges feature a honeycomb pattern that reduces material usage without hugely impacting print speed or durability.

Key Features:

- Compact Design: Holds up to 100 grams of filament, ideal for leftovers or samples. - Screw-Together Assembly: Custom print friendly threads ensure smooth operation and a secure fit. - Two Bottom Versions: Choose between a label-ready version or a plain design. - Filament Holder: Built into the top part for convenient spool winding. - Efficient Design: Honeycomb-patterned flanges save material without sacrificing strength or print speed. - Customizable: 📣 If you need a spool with different dimensions, feel free to comment with your desired measurements, and I’ll provide updated model files! Changelog:

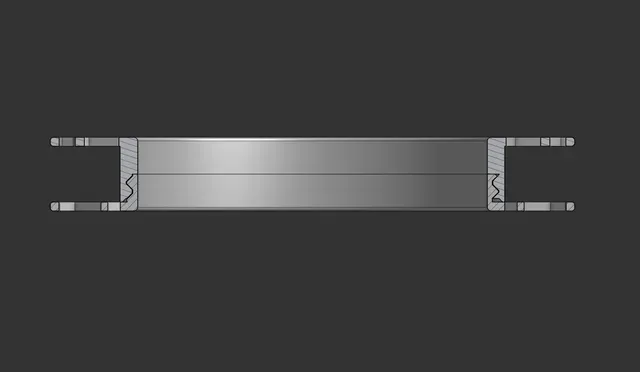

- 28.12.2024 [V1] - Initial Release. - 28.01.2025 [V1] - Updated cover photo and description. - 08.02.2025 [⭐V2] - Improved thread design, now more print friendly, 45 degrees and with chamfers for smoother assembly. Updated description and cover photo. Print Settings:

- Printer: Ender V3 KE - Layer Height: 0.16mm - Supports: None required - Seam: Scarf seam (optional) - Infill: 15% Gyroid - Top/Bottom Layers: 4 - Walls: 3 - Material: Hyper PLA Gray - Material Usage: Less than 50g (Bottom + Top) Print Time:

- Bottom: ~1 hour - Top: ~1.5 hours Keep your leftover filaments neat and accessible with this lightweight, durable, and customizable spool design.
