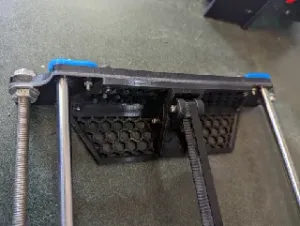

Anet A8 Belt Tensioner and Brace Y-Axis

ANET A8 BELT TENSIONER and BRACE Y-Axis

We have installed and tested the parts. Everything fits perfectly.

The M5 nut trap is very tight. Position the nuts in front of the traps and then use the 30mm screw to draw them in.

When the belt is taught - thread lock can be added to the nut/bolt to secure it in place.

Warning - the STL file loads into the slicer slightly tilted. Make sure you "Lay-Flat" before you print. I am looking at fixing this in the future. But for now it can be fixed in the slicer .

Parts List

- 1 - Idler Pully 16 Tooth M3 Bore (Purchase Here) - 1 - M5 x 30mm Bolt - 1 - M5 Nut (Purchase Here) - 1- M3 x 20mm screw (Purchase Here) - 1 - M3 Lock Nut (Purchase Here) - 3 Feet - GT2 Timing Belt (Purchase Here)
