6 New Drawer Sizes for "Fast-Printing Modular Drawer System (Vase Mode)"

What

After printing the “ Fast-Printing Modular Drawer System (Vase Mode)” I quickly realized that I needed larger drawers for some of my crap (I have a lot of crap). Therefore I designed new drawers for this system that are 2, 3, and 4 bays high for larger objects or just more volume.

The frames and frame joiners for the drawers can be found here: “ Fast-Printing Modular Drawer System (Vase Mode)”

It's nice addition to an already proven storage system. It's also nice to be able to still print these in vase mode to save on filament and printing time.

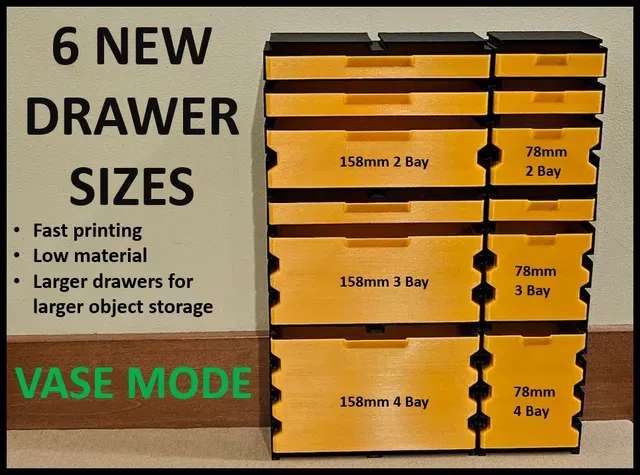

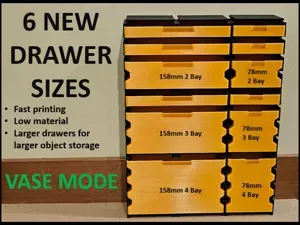

I created 6 new drawers sizes.

- 78mm 2x Height - 78mm 3x Height - 78mm 4x Height - 158mm 2x Height - 158mm 2x Height - 158mm 3x Height

Printing (VASE MODE - IMPORTANT!!!)

These MUST be printed with a .8mm nozzle in VASE MODE (Anything smaller will NOT work because of the overhangs). I also recommend a layer height of .2 or .24 (.32 on my A1 didn't slice perfectly and left a fragile spot in one of the corners). So, .2 or .24 should get the job done correctly.

I have printed these on Bambu A1, Ender 3, and a Sovol SV01, so any printer should be able to handle this as long as you follow the instructions above.

Licensing Note

There should not be a license problem here because I'm creating something that didn't exist before and just happens to fit into another design.
