Lock Pick 9 in 1 Multitool

Choose 9 attachments to print and assemble this multitool.

Print Lower, Upper, 2 Nuts, and 9 spacers.

The nut is hard to screw on with hand, use a tool if possible.

- Print threaded parts in high-quality settings. (i used 0.16mm layer height) - Print with part solid. About 5 walls or do 100% infill - The spacer is small, ARACHNE wall generator worked for this part - Use stiffer materials such as PLA, PLA-CF. - ABS or PETG are more flexible, which is bad for printed lock picks.

Assembly Instruction:

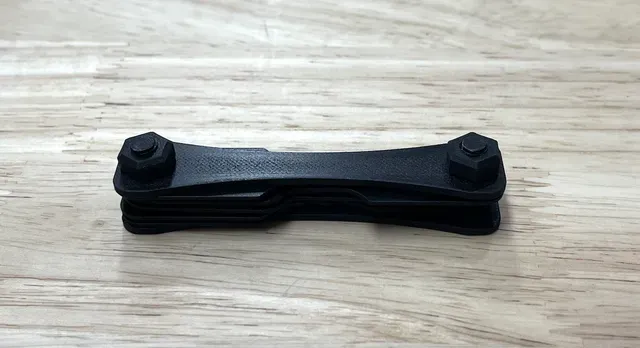

- Place a 1mm thick tool on one end of the first rod - Place a spacer (1mm thick too) on the end of the second rod - Repeat until 9 tools and 9 spacers are used up - Place Upper part on and screw nut if needed (The lid can be press fitted without nut)

Slim 6 in 1 lock pick:

https://www.printables.com/model/1138102-lock-picks-slim-6-in-1

Check out OTF Pick, Lock Pick Tensioners, Rake, and Notch Decoder too:

https://www.printables.com/model/1112320-otf-lock-pick

https://www.printables.com/model/1103439-lock-pick-tensioner

https://www.printables.com/model/1110171-rake-lock-pick

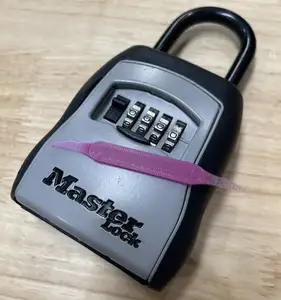

https://www.printables.com/model/1105728-lock-notch-decoder
