Handle Bar Flashlight / GoPro Bracket (31.8 mm)

This is a custom design flashlight mount for my bike with 31.8mm handle bar. You can use it as a GoPro or similar action camera mount as well.

You need:

Handlebar Bottom Bracket (1x)

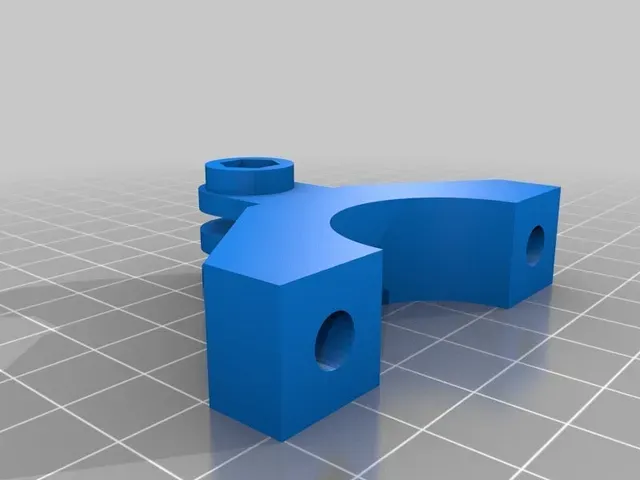

Handlebar Upper Bracket (1x)

Flashlight Bracket (2x)

Print instructions

Category: Sport & Outdoors Print Settings

Printer Brand: RepRap

Printer: Prusa MK2

Rafts: No

Supports: Doesn't Matter

Resolution: 200 microns

Infill: 20%

Notes:

I printed with 20% Honeycomb pattern, 3 vertical perimeters, 3 top and bottom layers with eSUN PETG. Holds up pretty well.

The clamps are 30mm in diameter, so it fits nice and tight with the flexibility of PETG.

All screws are 10-24, but other should work as long as it fits the hole.

Happy Printing
