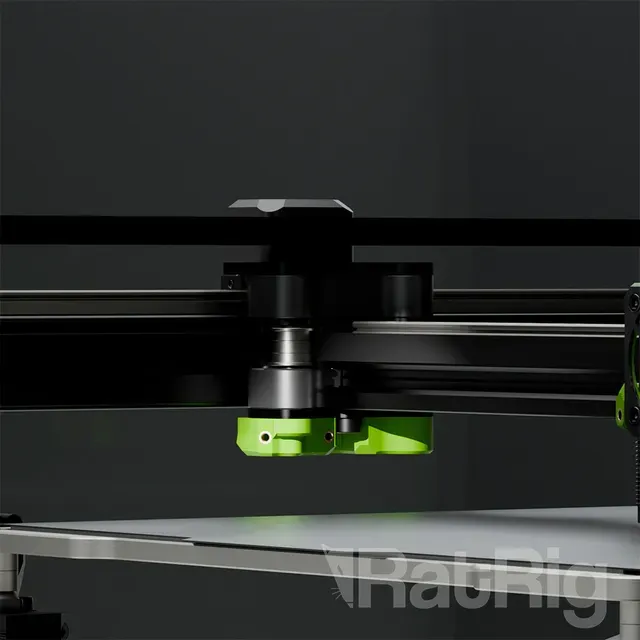

Rat Rig V-Core 4 - Printable Parts & Enclosure Panels

V-Core 4 Kit:

https://ratrig.com/3d-printers/v-core-4-category.html

The most up-to-date documentation (BOMs, CAD files, Build & Commissioning Guide) can be found at: docs.ratrig.com

This page provides the STL files for your V-Core 4 printed parts and DXF files for the enclosure panels.

All files are provided in the correct orientation for printing on a standard FDM 3D printer. In general, the printed parts are quite forgiving but are also quite large. If you suffer from drafts and/or poor bed adhesion you may need to use brims/rafts for some parts to prevent warping. The following table shows the recommended print settings when printing any of the parts provided.

Print Setting

Perimeters: 4 Line Width: 0.45mm Layer height: 0.2 - 0.3 mm Infill: 25% Supports: None

Notice: When slicing the files you will notice that some of the holes are covered. This is intentional, to simplify the printing process - those layers are there to trick the slicer into building a bridge there. Once printed those need to be poked out with a screw, screwdriver, Allen key, or even a matching size screw.
