Raspberry Pi Zero 2W Camera Case

Raspberry Pi Zero 2W Camera Case

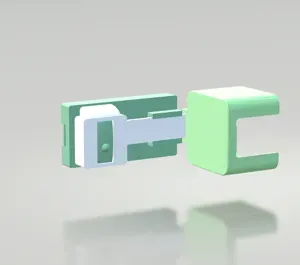

This Raspberry Pi Zero 2 W case is a compact and versatile enclosure for both the Raspberry Pi and a small Raspberry Pi module. Thanks to the integrated GoPro-style mount the camera can be attached almost anywhere. This makes the case highly flexible and practical in various scenarios such as 3d-printer monitoring, home surveillance or other projects where a small camera is needed.

I'm planning to continue developing this project when I get the time. I plan to add different styles of back plates to support different styles of mounts. If you have any suggestions feel free to comment.

Hardware:

- 1x Rpi Z2W - 1x Rpi camera module - 8x M2 heated inserts ( optional ) - 4x M2x5 screws (to hold camera module in place - 4x M2x8 screws (to hold the cover and raspberrypi in place)

Print Settings:

Printer: SK-Go2 Rafts: no Supports: no (for cleaner cable slot use organic supports) Layer height: 0.3 Infill: 20% Fillament: Green PLA
