BTT / BigtreeTech HDMI5 v1.2 Display mount for Ender 3 / S1/ S1 Pro

None of the offerings on printables so far, prints without significant support or needs an extremely tuned machine. Great designs that are relatively easy and reliable to print, don't come in version that supports v1.2 screens or are not made for Ender 3 s1 pro at all. I was looking for something simple, and minimalistic.

This model aims to print without supports (Tiny clean up is needed after), takes less time and is reliable for most printers irrespective of its tuning. For perfect prints however, a tiny support is recommended in the mounting screw holes at the corners of the base plate. Especially near the speaker hole

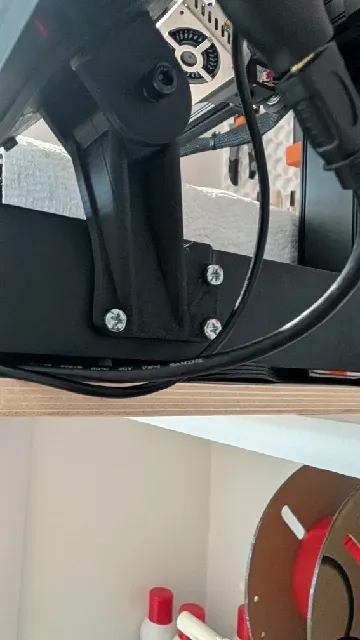

There are ton of other designs that have been time tested and look beautiful. I wanted to make something that was modular and people can bring in which ever display mount they want. the mounting plate has 4 holes. as long as you are able to match the holes in the base plate of the display, any display mount can be ported over.

Hardware Recommendations:

4x m3 heat set inserts 1x m5 nut 1x m5 bolt If this hardware does not workout for you, the base plates are left blanks so that you can punch holes as you see fit. A negative of the m3 screws has been added for reference. You can get away by using 3d gloop or similar plastic adhesives. But given the weight of the display, mounting hardware is recommended.

Print Settings: Prints well and strong in PLA

3 walls and 15% infill.
