3.5" Gotek Floppy Emulator Drive Bay Bracket

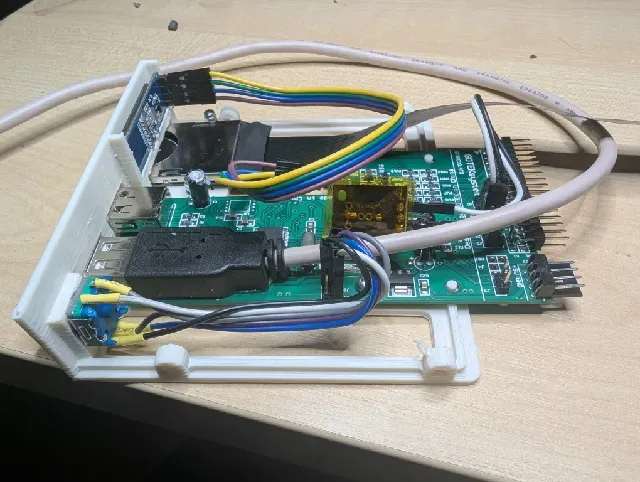

As Amiga 4000D doesn't have that much space in front for additional gadgets, I redesigned this Gotek bracket and added slot for SD Card extender and additional USB host port.

To fit USB connector, I removed Gotek LEDs and buttons as they're basically useless with rotary encoder. USB extender cable is just fixed on to PCB. It might have been possible to fit USB connector straigth to PCB, but I didn't have one in hand.

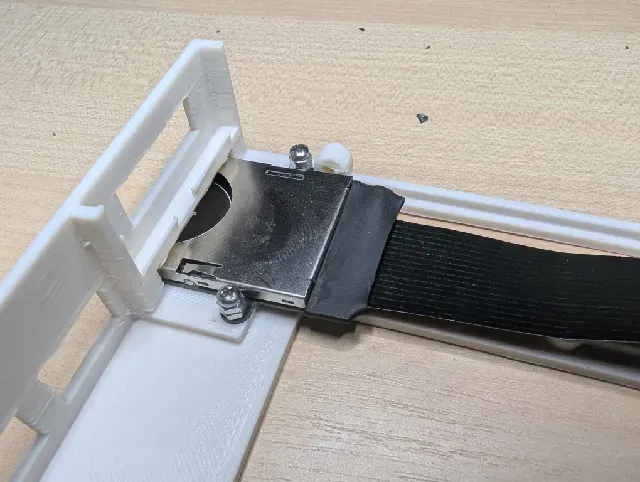

SD card extender is this https://www.aliexpress.com/item/1005001489124683.html and it's fixed to bracket with M2x4mm screws and nuts. I only had M2x8mm so I used 2 nuts as spacers.

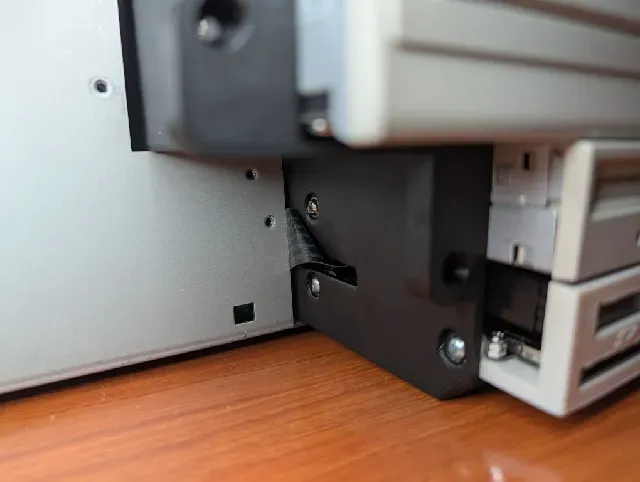

If you're mounting this to Amiga 4000, see my other model for whole drive bay bracket which makes using this a lot easier. https://www.printables.com/model/1150778-amiga-4000-hd-floppy-bracket-with-passthrough

Fusion 360 file included (still learning, so it's kinda mess, sorry).

SD card extender link is broken, but I think this is the same https://www.aliexpress.com/item/1005005649812146.html
