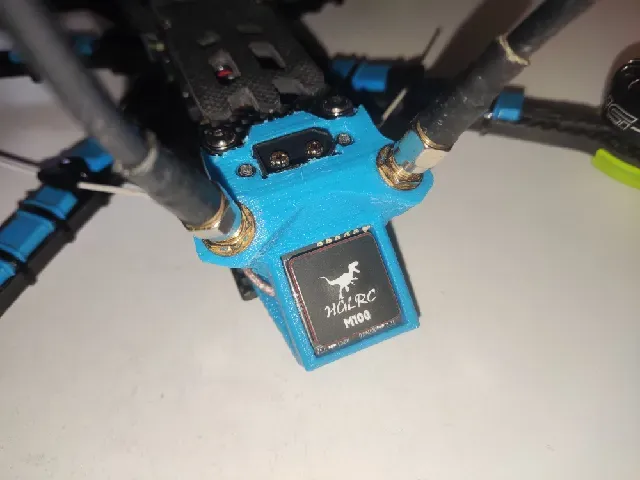

GPS + XT60 + VTX Antenna holder for iFlight Nazgul DC5 (Eco)

Holder for GPS, VTX Antennas (in my case DJI O3, but others with SMA adapters also work) and a fixed XT-60 for easy plug in of the battery.

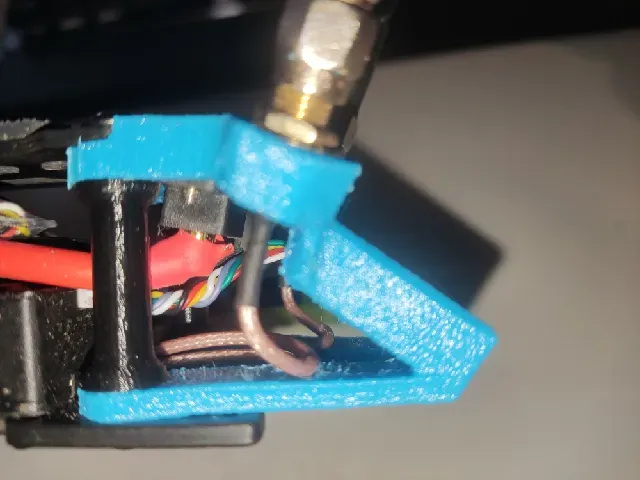

Print the main part in TPU and two spacers in a rigid material like PETG or PLA. The advantage of the split into two parts is that you can easily bend the TPU part open, to remove support and to install the wires an antennas. Then it gets quite rigid, due to the shape and spacer fixing the TPU part.

Features:

- Lightweight at 9g for all printed parts - Minimal length addition - Reduced flex of the GPS due to the triangular support - Thin layer at the bottom protects cables Compatible components used:

- Frame: iFlight Nazgul DC5 (Eco), (The regular Nazgul 5 V3 likely is also compatible) - GPS: HLGRC M100-5883 - 2x SMA Antenna Adapters - XT60E-M (XT60 with screw mount)
