Shallow Water Rc Jet Boat
Сведения о модели
- Площадка
Printables
- Цена
- Бесплатно
- Лицензия
- CC-BY-SA
- Можно печатать, изменять и продавать с указанием автора; переделки — под той же лицензией.
- Форматы
- STLSTEPF3D
- 164 Лайки
- 1 224 Загрузки
- 2 Напечатали
- 6 Комментарии
- 6 698 Просмотры
Описание
Parts (what I used)
Bronze Bushings -
https://www.amazon.com/gp/product/B07JLPC8TS/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&th=1
Shaft Couplers -
https://www.amazon.com/gp/product/B0867P8H6D/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&th=1
Servo -
https://www.amazon.com/gp/product/B0BLBMVYCW/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&th=1
Esc -
https://www.amazon.com/gp/product/B071GRSFBD/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&th=1
Motor -
https://www.amazon.com/gp/product/B08DLT47JS/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&th=1
Receiver -
https://www.amazon.com/gp/product/B09MVY4W7G/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&th=1

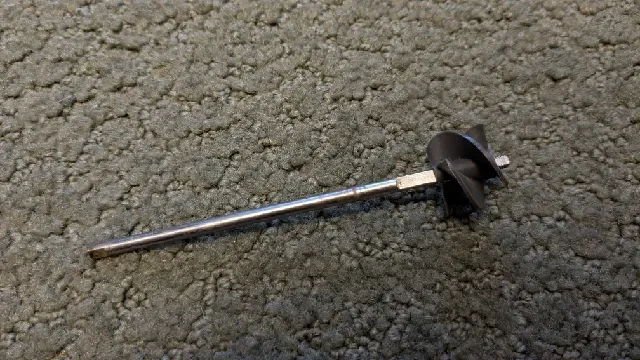

Driveshaft -
https://www.amazon.com/gp/product/B083NXGP98/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&th=1
Uses a 3s battery
Hull is printed as vertical as possible on the Bambu Lab x1c with 1 parameter for weight
Seal is printed out of ninja tek tpu
Lid is attached by 7 4-40 screws and nuts
Servo mount is held on with double sided tape
Esc is encased in resin in case of water entry
Receiver is coated in clear nail polish (I don't know if this actually works but it is still alive)
Fairly waterproof but not perfect (servo hole gets drilled by hand)
Will stall randomly if too much current is drawn
