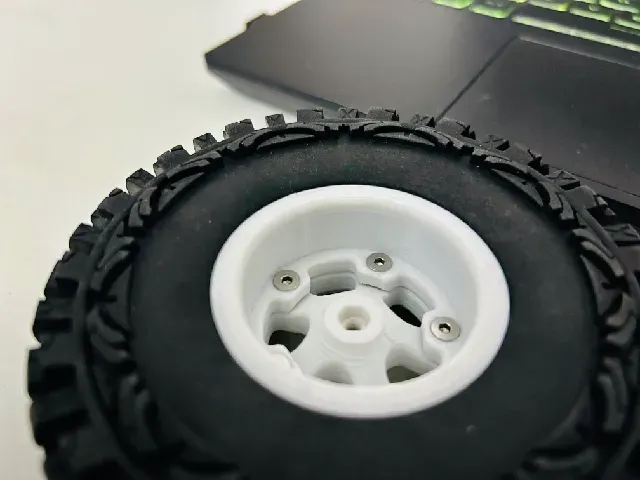

1/10 RC Crawler Bead-lock Wheel (12mm & 6mm HEX)

Complete Functional Beadlock RIM design for 1/10 RC Crawler

All the details about the project can be find from the following blog post : https://innovativegeek.com/how-to-design-a-3d-printable-rc-car-wheel-using-fusion-360/

Hardware you need for this product

- 112mm Diameter RC Tires: Get Here - M3x10mm Countersunk Socket Head Screws: Get Here - M3 Brass Inserts: Get Here

Printer settings that I have used for this project

- Layer Height: 0.2mm (for quicker prints). - Brim: 3mm (to ensure better adhesion to the print bed). - Wall Thickness: 1.2mm (for added strength. It will print 3 wall lines if you use 0.4mm nozzle). - Infill: 20% (adjust if you prefer a sturdier build).

Please go through following video for assembly instructions :

Please follow following videos how I design this using fusion 360 :
