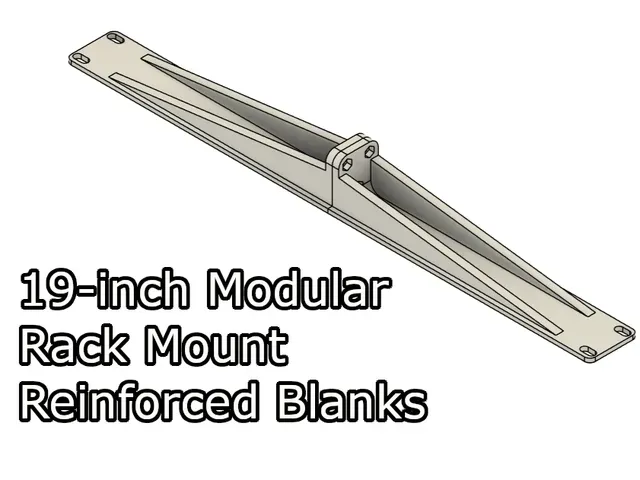

19-inch Reinforced Modular Rack Mount Blanks

A 19-inch Reinforced Modular Rack Mount Blanks. This is the beefier version of the regular 19-inch modular blanks , for those who need the extra strength.

I have added a .3MF project file as well.

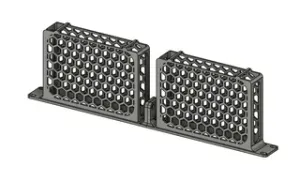

This mount is part of a 19-inch modular rack mount system I designed, you can mix and match the modules with other mounts. Take a look at my models here to find out the other 19-inch mount modules.

Do you like my models? Consider buying me a coffee ;)

Parts

- 3x M5 screws (Min size: 12mm, recommended size: 16mm). - 3x M5 hex nuts. Assembly

OBS.: The modules used in this tutorial are only for illustration purposes, and I'm using it for the whole series. It might not reflect the models you download at this page.

- To assemble the parts, insert the 3 screws into the Right module. - Then align it with the Left module. - After that, insert the hex nuts in the screws, and using a screwdriver or Allen key. - Tighten the screws until you start feeling resistance and the nuts are securely into place. After that, you can install the mount in your rack. Print Settings

Rafts:

Doesn't Matter.

Supports:

No.

Resolution:

0.2 or 0.24

Infill:

25% or more

Filament:

PLA+/PETG/ABS/ASA/Nylon
