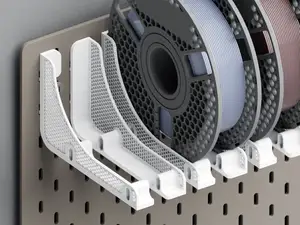

Filament Spool Holder for IKEA SKADIS

This set of holders for filament spools can be mounted to the popular IKEA SKADIS pegboard. In order to hold one spool there are always a left and a right part which belong together.

By selecting the appropiate distance (=holes) between the parts it can be adapted to spools of different width:

- 0: 4 - 5,7 cm - 1: 6 - 8 cm - 2: 8 - 9,8 cm Due to the alternating and pattern of the mounting holes you should pay attention to the required parts (also to the corners). The second image above should give you a basic idea on the layout and where to use which part (note that you can always interchange holders to have space for wider spools).

For every holder there's also a second part included (the infill area visible to the side). It's kept seperate so that you can customize the infill pattern to your needs. Combine the parts in your slicer or use the included 3mf-files (setup for a Prusa MK3S in PrusaSlicer with mostly default settings). For the *_2.stl chose no top and bottom layers.

UPDATE 20.01.2022: Added parts DL/DR and EL/ER as an alternative for AL/AR, if the mounting screws for the SKADIS board are sitting on the top or bottom row.

Print Settings

Printer: Generic

Rafts: No

Supports: Yes

Resolution: 0.3mm

Infill: 20%

Filament: Generic PLA Generic

Notes:

- Support material is needed for the hooks. - A brim is recommended for better adhesion.
