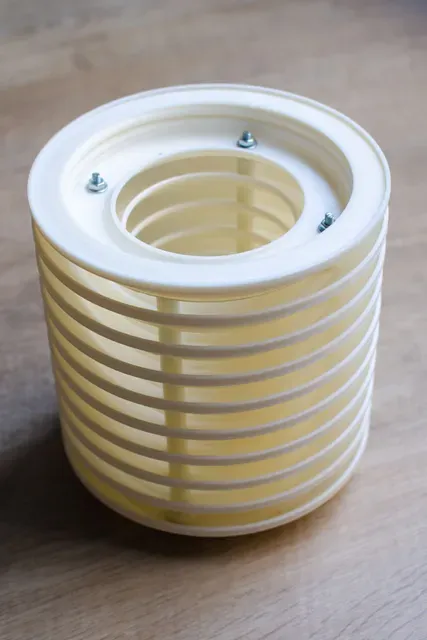

Weather station : Stevenson screen V2

To build the Stevenson screen, you need :

Stevenson screen :

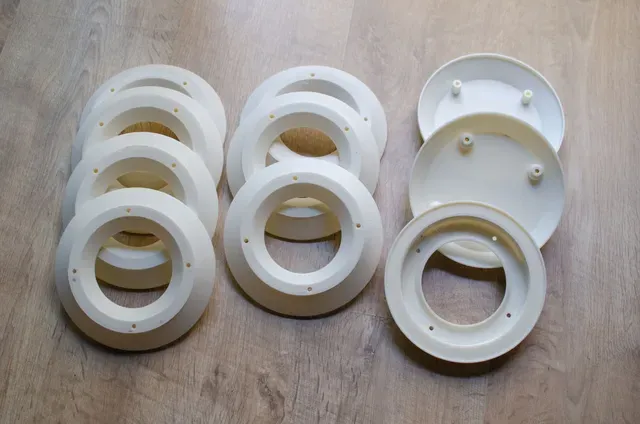

- 1x bottom - Nx cup to reach the desired height (7 for me) - 1x top1 - 1x top2 Base :

- 1x base - 1x PcbHolder and PcbCover - 1x ExtensionArm, SolarCellHolder - 1x SmaHolder (if you use an antenna) - 1x BoxSeal, CableSealSensor and CableSealPowerAntenna (printed with TPU) Some Screws :

- 4x threaded shaft with a height corresponding to the number of printed cup - 8x M4 hexagonal nuts (4 of them are inserted into top2 during print) - 4x M5x?? Depends on what the stevenson shield will be attached - 2x M4x16 Extension arm - 5x M3x10 Sensor box + sma holder - 4x M3x20 Sensor box cover - 2x M3x6 Solar cell - 4x M2.5x5 PCB For Bottom Cup, be carreful to make a rotation in your slicer, and not a mirror, otherwise the threaded will not work.

More details here (in french) : https://www.sanglierlab.fr/2025/02/01/station-meteo-v2-temperature-et-humidite/

Thread library used is from Dan Kirshner.
