Bondtech LGX Lite Spacer Plate for Prusa Mini/Plus

Note: I haven't actually installed this and ran any prints on the Prusa Mini+, so use at your own risk. I didn't test out the flush plate, but included it anyway.

Spacer plate to fit the Bondtech LGX Lite extruder on the Prusa Mini+. You will still need to print all the parts from the Sherpa mini direct drive mod here:

https://www.prusaprinters.org/prints/66519-prusa-mini-sherpa-extruder-direct-drive-conversion

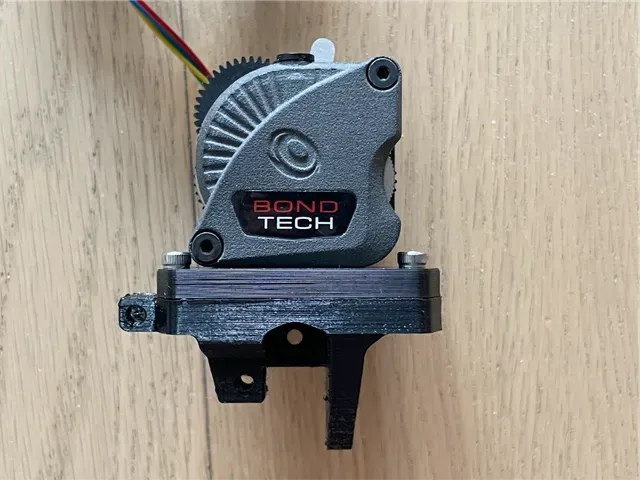

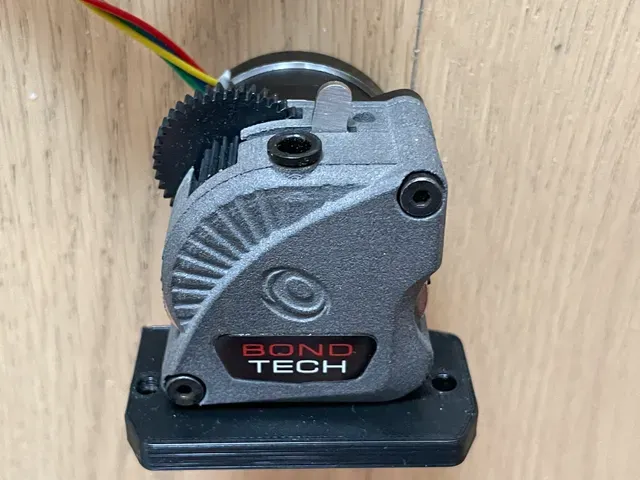

This plate goes in between the mounting bracket and the LGX Lite. I included two versions, one where the top screw heads sit on top of the bracket and one that has the screw heads sit flush on top of the bracket.

Installation instructions

- Remove the front plate of the LGX Lite extruder and install the 2 x M3 square nuts on the bottom of the extruder. - Screw the plate to the LGX Lite extruder using the 2 x M3*6 screws. - Screw the plate to the bracket using the 2 x M3*12 or 2 x M3*8 (if you're using the flush plate) Parts needed:

2 x M3*12 or 2 x M3*8 for flush plate

2 x M3*6

2 x M3 square nuts (these come with the LGX Lite)

I advise printing this in ABS/ASA/PETG due to potential high heat of the stepper. It should be an easy print. I printed this in PLA to test.

-Included the step files for both plates.

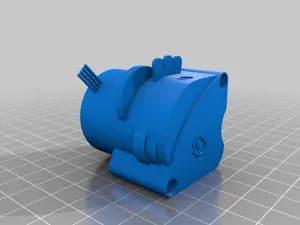

I used the step files from the Bondtech website to help create the plate.

https://www.bondtech.se/product/lgx-lite-extruder-custom/
