Remix - Recreator3D MK6 Fun Size Alternate Mount for Community Bottle Cutter

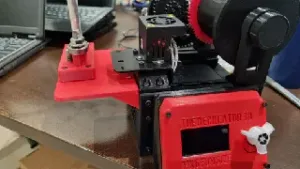

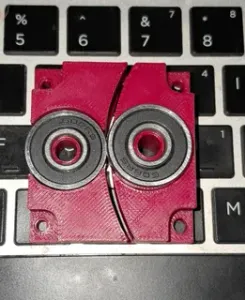

This remix adds a plate to the left of the hotend on a Recreator3d MK6 Fun Size, replacing the mini spooler. This plate is designed to be used with the V3 Community Bottle Cutter and has the appropriate matching M3 mounting holes, as well as pass throughs for the M5 bolts used with the bearings in the cutter.

Mounting the plate requires 2x M3 threaded inserts to be set into the middle of the printed 2020 extrusions - if using aluminium extrusions tap these instead. An additional support is included that inserts into the existing minispooler hole in the MK6 left side.

Any cutter based on the Community Bottle Cutter V3 can be used with this mount.
