DJI Mavic 2 Mobile Phone Bracket Mount for Apple iPhone X etc.

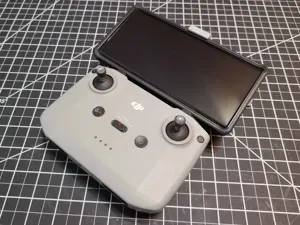

Mobile Phone Mounts for use with the DJI Mavic 2 Remote Controller (and all similar DJI controllers for Air/Mini etc). The mounts allow for the immediate use of mobiles without having to remove the phones case. Originally designed for the iPhone X, but compatible with a wide range of similarly sized mobile phones.

Convenient, small, light weight and super quick and easy to use. These left and right mobile phone mounts slot simply into the remote control lower arms and grip your compatible phone to provide full screen and front camera access. Simply use the original DJI to Micro USB/Lightning cable by threading it through the hole of the left-hand bracket.

The phone bracket mounts can be printed and used as-is, but I recommend installing some protective padding which not only protects the phone but should add additional grip. Adhesive backed thin foam can be bought from good hobby and craft shops.

=====

If you like this model please click the 'Like' button.

Also I'm super happy to see photo's of people's makes, so please come back and share a picture of your print. :-D

And if you found my design helpful or it saved you some $$$ I'm always grateful for a small donation that will help fuel future designs by way of a cup of coffee. Thank you.

=====

This model is not to be uploaded or sold in any form, or modified, and is intended for personal use only.

Print Settings

Printer Brand:

Prusa

Printer: i3 MK3

Rafts:

No

Supports: No

Resolution:

0.2mm

Infill: 30%

Filament:

[

Hobbyking Premium PETG (or PLA) ](http://www.amazon.com/s?url=search-alias&field-keywords=Hobbyking+Premium+PETG+%28or+PLA%29&tag=thingiverse09-20) Black Notes:

With suitable bridging settings chosen supports are not needed. Simply print each bracket stood upright with the thicker stepped end face down on the print bed.

Post-Printing

I recommend installing 1.5 - 2.0mm adhesive backed neoprene sponge foam into the inner cavity of each bracket. After measuring the size of the area I cut squares of the padded material, pressed it into place and then carefully removed the foam on the left-hand bracket (with the hole for the phone connecting cable) using a small craft knife.

Category: R/C Vehicles
