HP ProDesk 5.25-inch half-height SSD drive bay

Площадка: Printables
Цена: Бесплатно
Лицензия: CC-BY-NC-SA; Только некоммерческое использование с указанием автора; переделки — под той же лицензией.
Форматы: STL

9 Лайки
63 Загрузки
0 Напечатали
0 Комментарии
439 Просмотры

Эта модель на других площадках

Thingiverse

Автор:marigu

Опубликована 10.02.2025

Скачать на

Printables

Описание

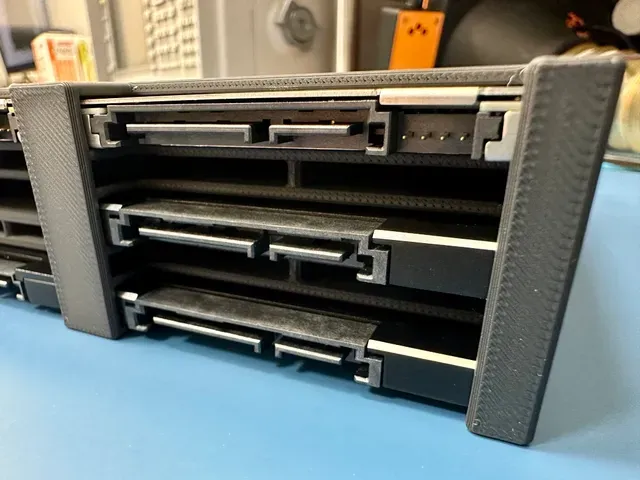

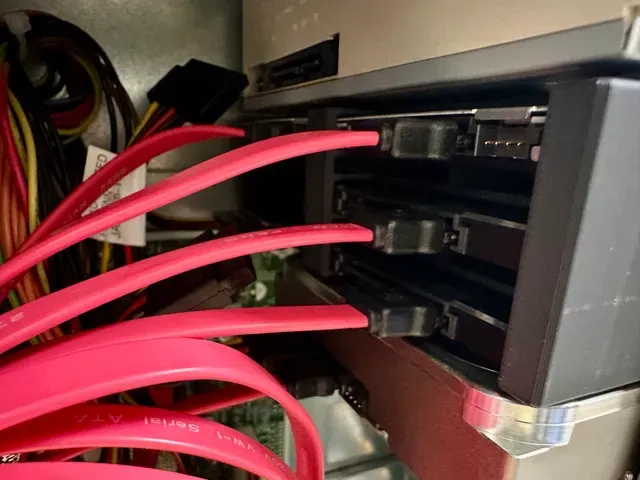

I built NAS server from old HP ProDesk G1 MT computer. I have added some 2.5" SSD disks there so i needed some holder for them so i have print holder for 6 SSD and slide whole holder to 5.25-inch half-height drive bay (under CD-ROM drive). When you do not need CD-ROM drive you can put two these holders there and you will have holder for 12 SSD disks (not tested, i have used only one holder for 6 disks under CD-ROM drive). Also i have printed two holders to secure all SSD disks on their positions. These holders are screwd to main holder (see photos, holders are blue). If your disks are secured enough and not moving much inside holder you can avoid these additional holders.

It will probably fit other PC brands/cases as well (not tested).

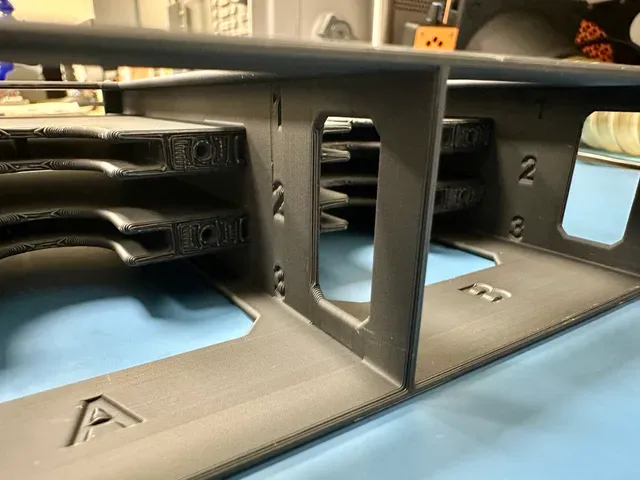

As it is bigger object and you can have problem with warping i have printed it verticaly (bottom as where Numbers and A,B bay letters are) with brim and supports.

X1C BambuLab 0.24 (draft) 20 infill PLA+ brim (to avoid warping) supports
