Spool Holder

This spool holder is designed to hold a single 1Kg spool and should fit most spools.

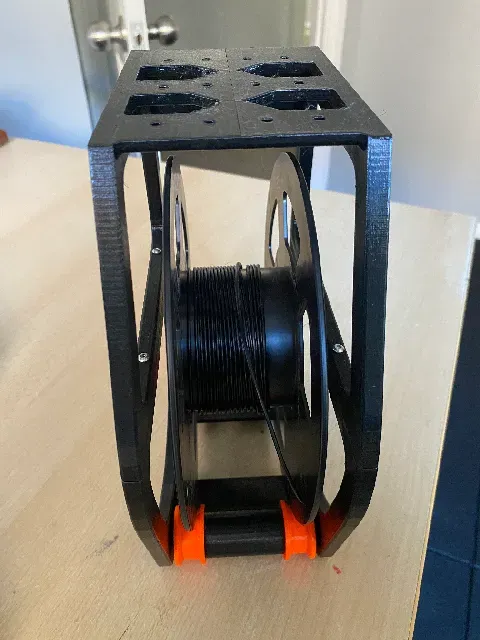

The holder is designed to be fixed from the top to the underside of a shelf, or inside an enclosure (fixed to the underside of the lid). In my extended height design Lack enclosure, it fits just right above my printer, and there is space for 3 spool holders side by side.

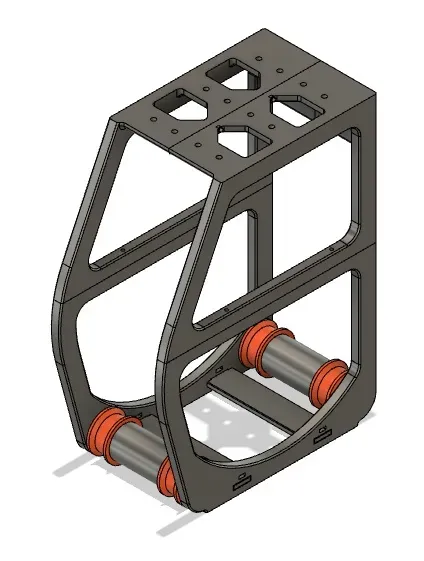

The spool holder is made of 12 printed parts, with 4 x 608 ZZ bearings, and some nuts and bolts. Parts are keyed together, are easy to assemble and print with no supports at 0.2mm layer height. I have printed in PETG.

Requires:

4 x M3 x 12mm cap head screws

4 x M3 x 18mm screws (cap head, button, or hex)

2 x M2 x 12mm cap head screws

8 x M3 nuts

2 x M2 nuts

4 x 608 ZZ bearings

Spool holder is fixed to the shelf using 8g wood screws
