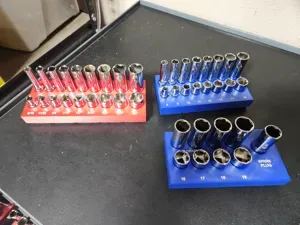

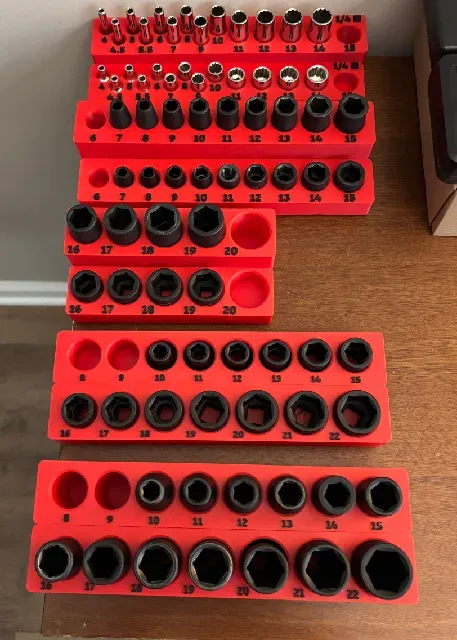

Tekton Socket Holders 1/4, 3/8, and 1/2 Metric Gridfinity

***V2 models updated 3/8" 20mm due to hole being over sized

These are socket holders for Tekton's current sockets

¼" models are for NON IMPACT sockets

3/8" and ½" models are for IMPACT sockets

I found that the dimensions from Tekton's website varied on two of my sockets so you may have tight fits on some if manufacturer tolerances are not maintained.

10mm Deep ¼" was tight for me and 20mm Deep ½" was loose

¼" sockets include: 4, 4.5, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15

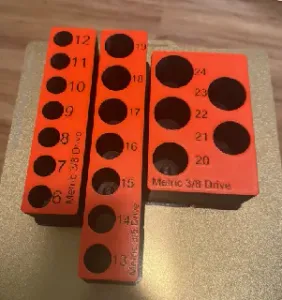

3/8" sockets include: 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20

½" Sockets include: 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22,

(23, 24, 25, 26, 27, 28, 29) Files available but not shown in pictures

Stickup is 0.4" for shallow sockets, 0.8" for deep 3/8" sockets and 1" for deep ½" sockets

Tolerance is .02" diametrically on sizes up to 1", .03" up to 1.5" and .04" for larger sizes

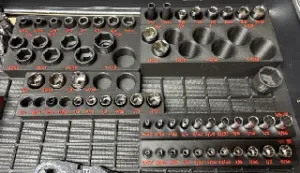

I'm working on making a printing the Inch sizes next as well as holders for Torx and Hex
