DIN rail Raspberry Pi 4

Simple DIN rail mount for Raspberry Pi 4.

Only the Clip needs support and best printed .1mm precision although tried .2 and also works with some cleaning up with sandpaper.

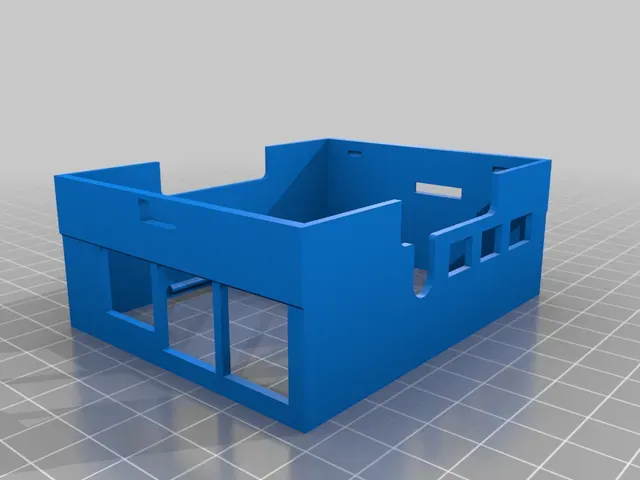

The PCB_Pin also best printed .1 precision. All printed with PETG. To avoid warping for the Body and Lid you can add a brim.

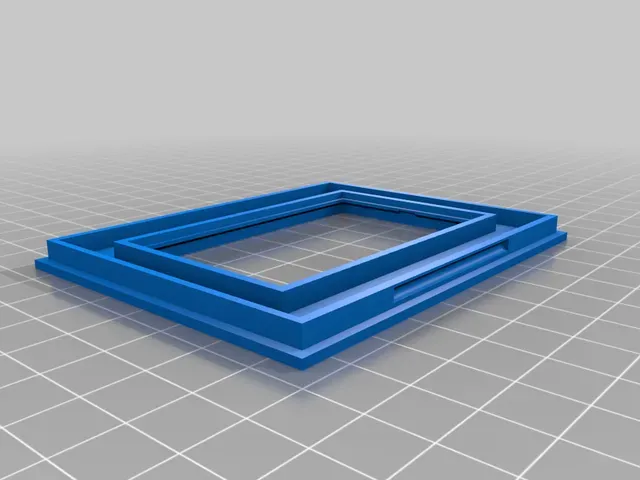

The Lid has 2 versions, one using the plexi "window" recuperated from an original DIN rail mount (I had one for Raspberry Pi 3) and a closed one.

I included the design files so you can easily adapt to your wishes.

Please share some actual prints and improvements/additions.

Print Settings

Printer Brand:

Prusa

Printer: I3 MK3S

Rafts:

Yes

Supports: Yes

Resolution:

.1 and .2

Infill: 20%

Filament:

Prusa PETG Notes:

Please see notes. Not all parts need rafts or support.

Category: Electronics
