Eachine Tyro69 Mount

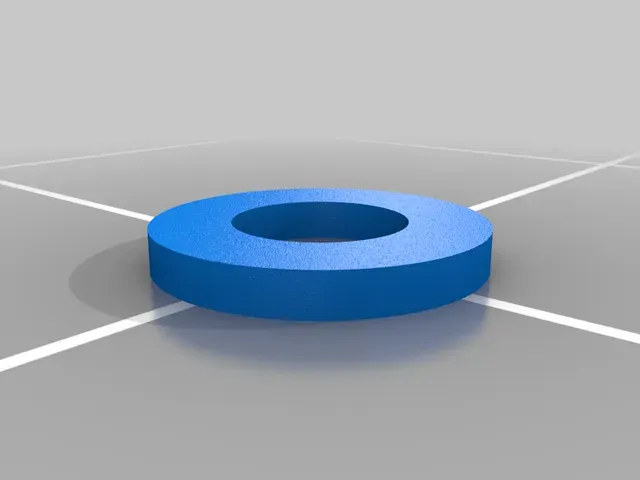

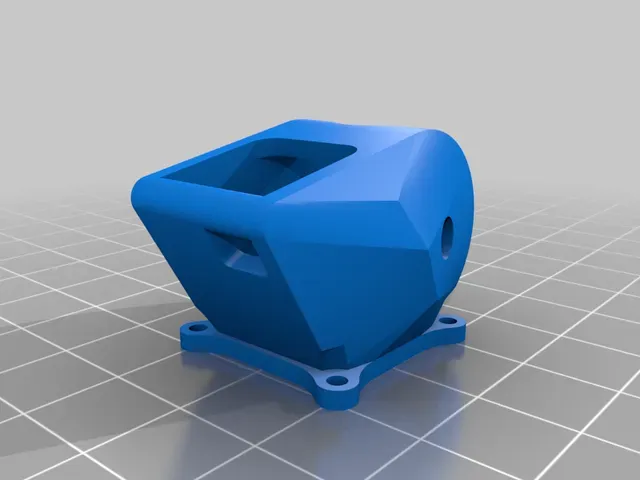

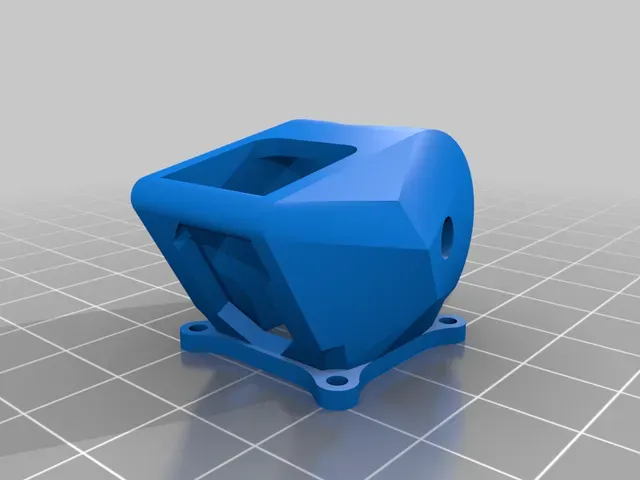

This is an alternative camera & vtx mount for the Eachine Tyro69 fpv race drone. It allows to mount a proper nano fpv camera and a more powerful vtx. I've attached two versions, one with a hole in the back to increase airflow in case the vtx would get too hot (Mount AF). I've also added washers to put between the camera and the side of the mount, in case the camera was too small and different spacers in case the screws aren't long enough. For my drone, I've raised the lowest level of the stack and lowered the highest level.

All source files are available for download, feel free to customize and remix.

My camera & vtx:

- Eachine NANO VTX

- Caddx Turbo EOS2 Print Settings

Printer Brand:

Prusa

Printer: I3 MK3S

Rafts:

No

Supports: Yes

Resolution:

0.15mm

Infill: 20% Gyroid

Filament:

Fillamentum TPU 98A Black Notes:

Print with custom support as shown in the image. In PrusaSliser: For support enforcers only and Paint-on supports .

The print spacers with a softer material e.g. TPE 70A.

For the washers, PLA works fine.
