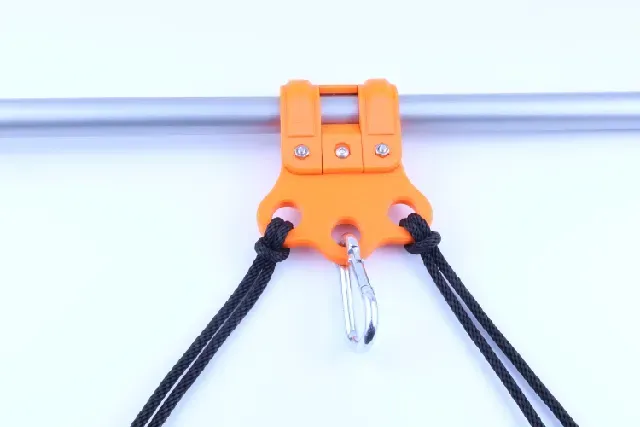

Lamp_Clamp paracord grow tent

If you like what I do here, come visit my (German) Discord or my Facebook group.

Discord: MX-creations

Facebook: 3D printed Grow Tools & Accesories - free .stl

This is the safest way to hang a lamp, a carbon filter or whatever u want into your grow tent.

Its made for use with a special version of the Strongsnap-MXG1 (fan holder) Clip_V3 , wich is available for poles with 16 or 22mm diameter. It can be found here:

- 16mm - 22mm

^^each of those clips can hold up to 8kg (maybe more but not tested)

The lamp_clamp uses three of those clips. So pay attention to the print settings to ensure sufficient stability of the base body.

Print settings:

Material: PETG Nozzle: 0,4mm Layer: 0,2mm Infill: 50% Grid Perimeters: 6 Solid layers: 6 (top+bottom)

I would recommend these settings to ensure maximum durability. Of course, you can also use your own settings, and it will still be stable.

After printing the body and attaching the clips with M3x16mm srews & nuts it is easy to mount in your tent (see animated .gif). Does the opposite orientation of the clamps prevent lateral slipping under high load.

The clip comes with two differend sized TPU inlays (1&1.2mm thickness). - Use 1mm if u want to slide the clamp on your pole. - Use 1,2mm for a fixed connection.

I hope you will enjoy it & stay green !
