Springer Nerf Rayven Half Dart/Talon Style Magazine

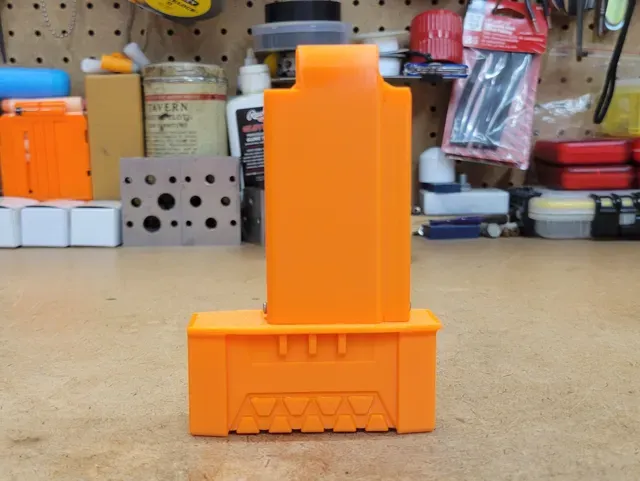

Hello everyone! This is a four dart capacity short dart/talon style magazine designed to work specifically with my Springer Rayven blaster. One of the main goals of the springer Rayven project was to keep the Rayven looking as original as possible, but since I decided that the blaster would exclusively use half length darts, I thought it would be fun to make a magazine that held darts like a talon magazine but fit into the space in the magazine well like a standard six round Nerf magazine.

First, I found t4obrien 's wonderful sure.t mag design here on Printables for the top portion of the magazine. Then, I modeled the base of a standard six round Nerf magazine, All that was left was moving both parts into place in my springer Rayven file and adding the geometry and screw holes so that they could be assembled when printed.

The magazine holds four standard half length darts. While the top portion does fit in magwells designed for talon geometry, the location, size, and placement of base will probably prevent it from fitting into any other blasters other than the springer Rayven it was specifically designed to fit in.

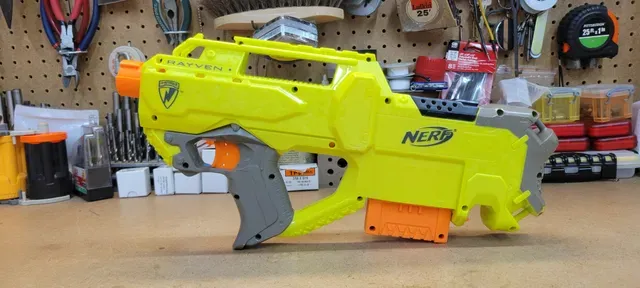

This was the perfect addition to my Springer Rayven project, and I couldn't be happier with how they both turned out. I hope everyone enjoys them as much as I have!

Huge thank you to t4obrien for including the STEP files of his sure.t mag on the magazine's Printables page!
