Resistor and Capacitor Labels E12, E6 series for Various Size Stackable Resistor Storage Box

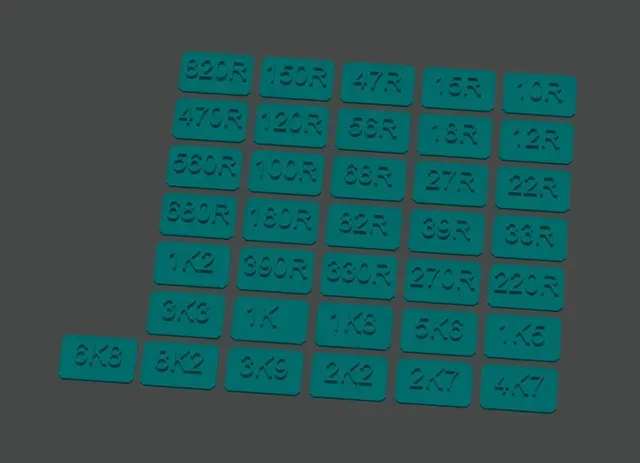

I created a full E12 series of resistor labels for the 1x1x1 box and drawer with 3 comapartment. In future i will add more label for extending some values from E24 series and also add labels for small capacitors.

I did a manual filament change for the value layer. I recommend to print the first layer fo the value in the same color of the drawer and do the change on the second value layer.

update 2025-04-06: added E6 series for capacitors from 1nF to 2200µF

The small capacitors from 1nF to 6,8µF fits perfectly into the small resistor box 1x1x1. For the values from 10µF to 680µ, which are a little bit bigger, i used the 2x1x1 box (double width) with 3 compartments. The labels there for are prefixed with “DW2x1x1-”. Capacitors from 1000µF needs more space. So i decided to use a drawer 2x1x2 with also 3 compartments. The labels are prefixed with “DW2x2-”.
