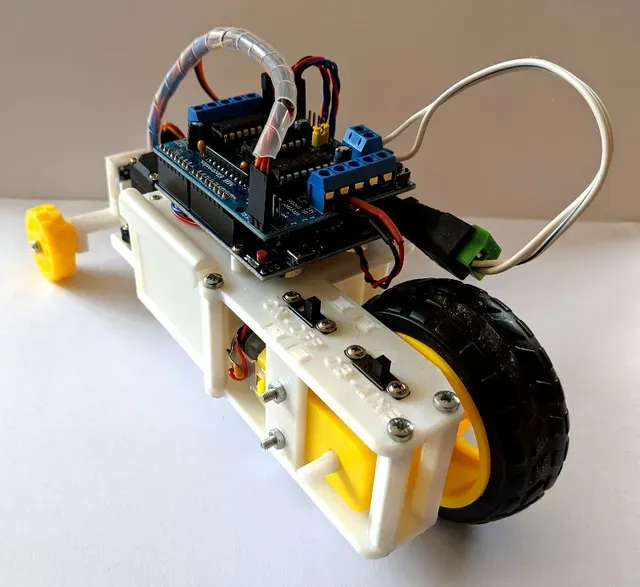

Arduino UNO 1WD Robot components

A set of printed components to build a 1WD Robot that is controlled and managed by a Arduino UNO microcontroller and a UNO motor shield.

This (now quite old!) robot development can be controlled with a pair of slide switches.

All the components use 1.75mm PLA and a layer height of 0.15mm with print details for each component produced on an i3 Mk3 shown in the table below.

Further details on the build and use of the robot are at this link and example software to operate the robot is downloadable from here .

component file name/description needs support (Y/N) brim (mm) filament length (m) print time (i3 Mk3)

battery_shutter02_roty90.stl : slide in ‘shutter’ to cover the battery holder opening N 10 3.3 2h 2m

2x_1-wheeler_long_chassis_spacer03_3mm.stl : pair of spacers separating the top and bottom plates and holding the motor with 2x 30mm M3 pan head screws and nuts N 0 1.09 22m

btm_slim_motor_plate_with_battery_holder06.stl: bottom plate of the robot chassis with the battery holder N 10 13.59 4h 17m

front_axle_assembly_with_round_horn22.stl: front axle assembly with ultrasonic sensor opening and positioning recess for a round servo horn N 10 5.37 2h 51m

MG996R_cradle03_roty180.stl: holder for the MG996R servo that self-taps onto the battery holder front face with two 8mm M3 pan head screws N 3 1.16 30m

top_slim_MC_motor_plate05.stl: top plate of the robot chassis with openings for the slide switches attached to the bottom plate using the five hex-spacers plus two 6mm M2 self tap screws N 10 5.47 1h 44m

us_sensor_bracket06_roty90.stl: clamping bracket for the ultrasonic sensor that screws onto the front axle assembly with two 6mm M3 pan head screws N 3 0.75 18m

2x_rotating_wheel_01_cylinder_tires.stl: pair of front wheels that free-spin when screwed to the front axle assembly with 20mm M3 pan head screws N 0 3.91 1h 42m

5x_35mm_hex_spacer01.stl: hexagonal spacers 5 spacers to ‘pin together’ the top and bottom plates with 10x 8mm M3 pan head screws N 10 2.61 2h 3m
