Sovol SV08 Funssor Aluminum Bed and Build Plate Border

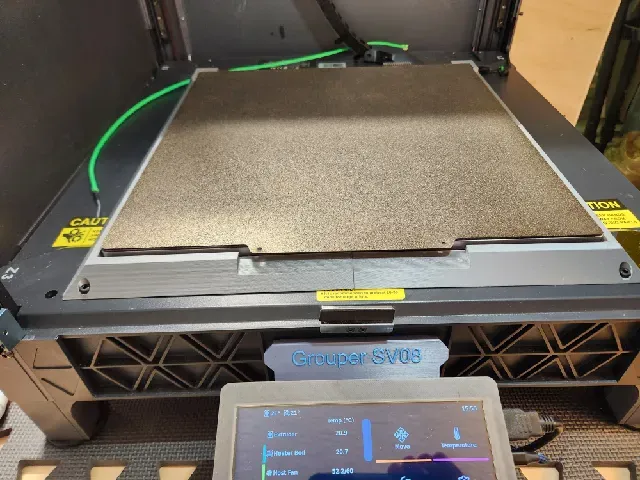

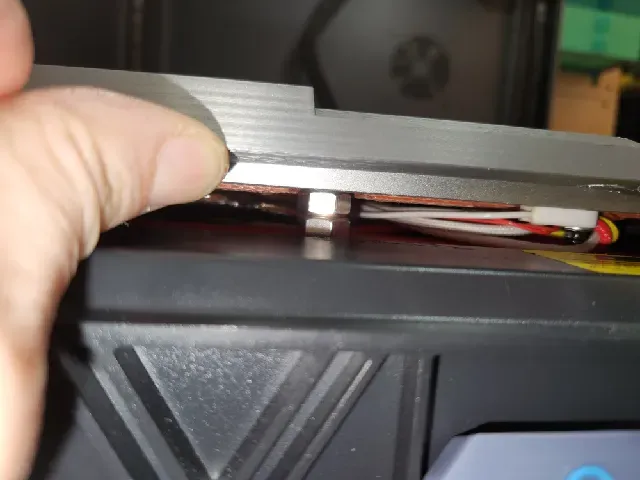

This is a border to surround the bed and bed heater for anyone who has modded the sv08 and replaced the OG taco bed. I used this bed adapter and a total of 8 5/16 nuts doubled up to raise the bed off of the adapter. The bed that I bought is this one off of aliexpress.

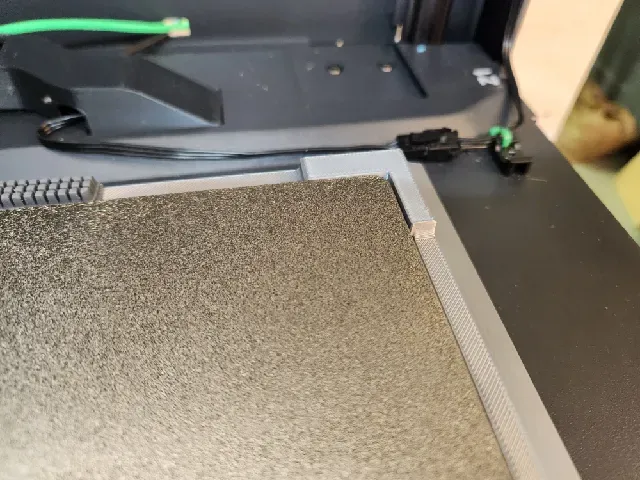

The border as designed will fit the bed and build plate exactly as long as your setup ends up being the same height.

All of the pieces were printed in Bambu Lab ABS.

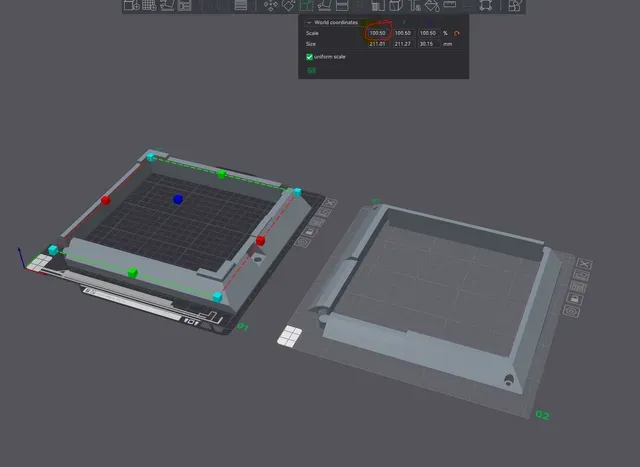

I scaled each piece up 0.5% due to abs shrinkage. You need to determine what works for you.

I also changed the xy-hole compensation to a +0.2mm. Not sure if this is absolutely necessary. But, I did not add any tolerance settings for the joints that fit the pieces together.
