Sovol SV08 BTT HDMI7 v1.2 Case and Mounting Bracket

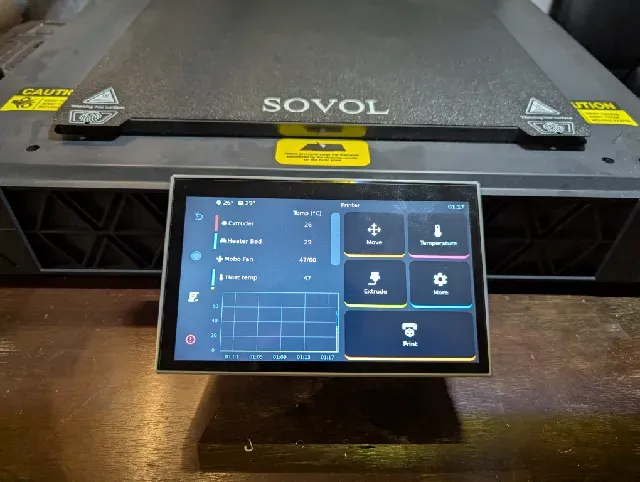

A simple case and mounting bracket to use BTT's HDMI7 v1.2 on a Sovol SV08. It mounts on using lugs like the original screen. Will probably block enclosure doors if you have them, I don't have the enclosure kit. I think it'd need a different bracket to lower the screen so it doesn't block the doors. Prints in two pieces and screws together. The bracket may be a bit of a tight fit depending on your printer tuning/settings, just use a needle file on the inside faces if so. It needs to be tight to prevent any wiggle. This was designed in two pieces so that you can optionally design different brackets to suit your needs.

Hardware:

4x M3x8 screws (Countersunk) 4x M3x12 screws (Countersunk) 4x M3x4x4.2 heat inserts w/ a starting OD of around 3.85mm

Print instructions:

See picture for orientation. Supports required for bracket, optional for main body case. Other details aren't really important, just go with what usually works well on your printer.
