universal ADXL345 bracket

A compact and versatile ADXL345 mount designed for quick vibration analysis on 3D printers using Klipper.

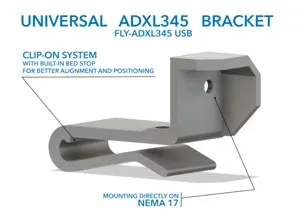

This universal bracket supports:

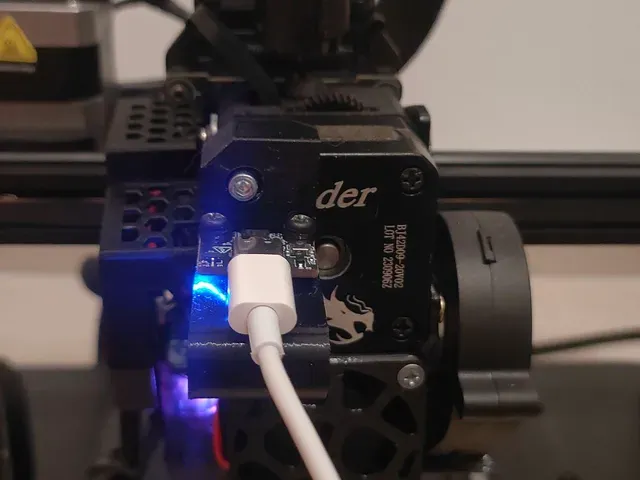

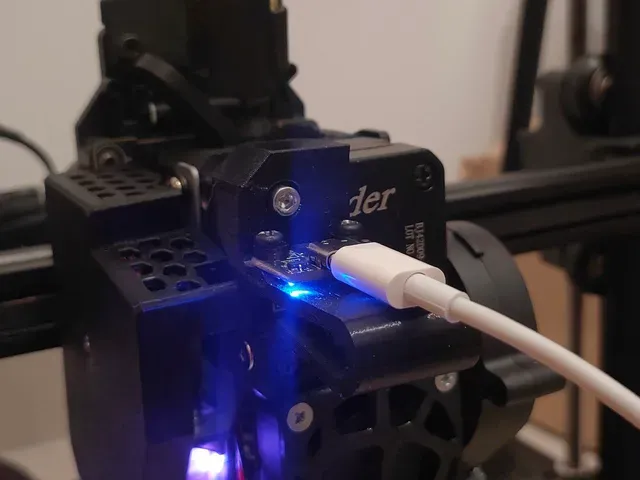

🔷Mounting directly on NEMA 17 stepper motor (X axis),

🔷Clip-on system with built-in bed stop for better alignment and positioning.

✅ Features:

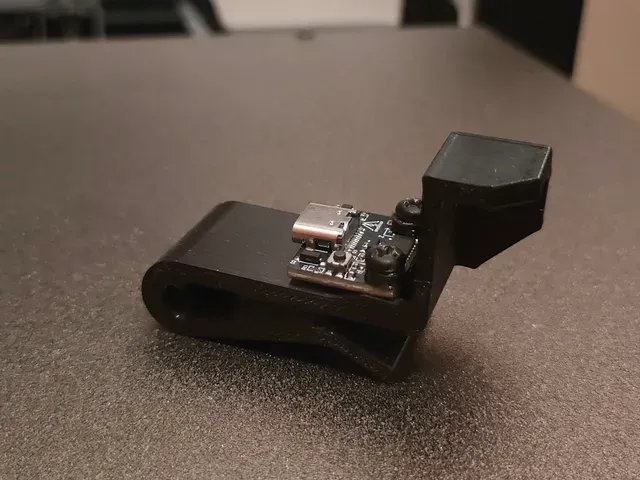

🔷Fits both standard ADXL345 boards and Fly-ADXL345 USB .

🔷No supports needed – print and place!

🔷Strong spring clip for quick attachment to the printer bed without screws.

🔷Uses M3 heat inserts for durability.

🧰 Hardware Needed:

2× M3x6 or M3x8 screws (for the ADXL345) 2× M3 heat-set inserts 1× M3x20 screw (for motor mounting) (Optional) 1mm spacers

📄 Print Settings:

Material: PETG or PLA

Layer height: 0.2mm

Infill: ~15%

Supports: ❌ None needed

📝 Tested on:

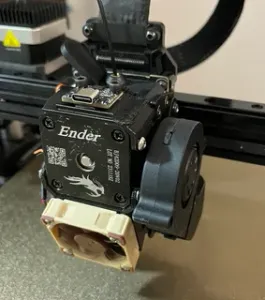

✅ Ender 3 v3 SE

Leave a comment with your printer model if you’ve tested it — I’ll keep updating the list!
