Parametric Bathroom Radiator Hook

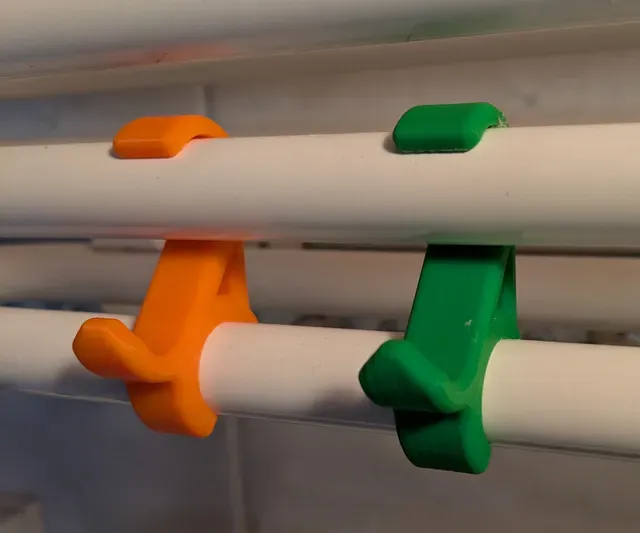

This is a parametric design of a bathroom ladder radiator hook.

I've uploaded the dimensions of the two radiators in my house as examples.

- Pipe diameter 18.5 mm, outer pipe distance 53 mm - Pipe diameter 22.5 mm, outer pipe distance 67 mm The outer pipe distance is from the top of the pipe to the bottom of the pipe below. I found it the easiest to measure.

If your dimensions are different, I will be happy to upload them. Just send me a message.

You can also create your own hook. Just modify the parameters "pipe_diam" and “pipe_outer_dist”. But there are many more parameters, such as hook diameter and length, width, thickness, etc. Feel free to experiment. And please share your experience.

Print in the specified position. No support required.

I printed mine in PLA. PETG would probably be more suitable depending on the heating water temperature.
