SP-Connect Mount for KTM Motorcycles

Please read this description carefully and understand it, before continuing.

Disclaimer: You are responsible for the safety of your bike. If you don’t know what you are doing, stick to the original parts.

Hi,

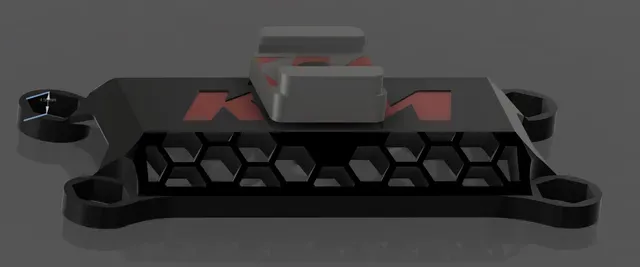

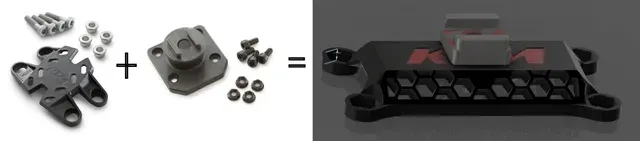

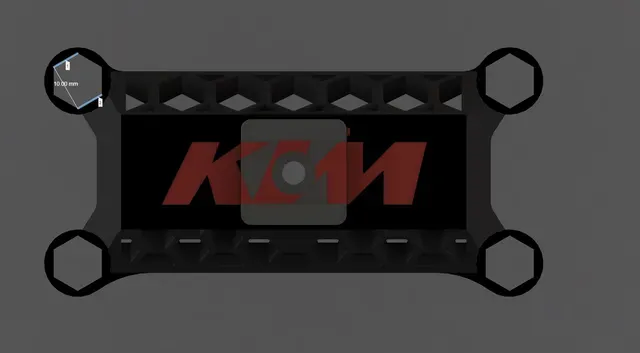

this is a fusion of the original KTM GPS Bracket (64112992033) and the SP-Connect Smartphone mount (61912991044) into one Bracket.

You can flip the small bracket to fit your smartphone horizontally or vertically by unscrewing and tightening the middle screw.

I use an iPhone 12 Pro Max horizontal. I already damaged one Phone due to the hard vibrations. It may be a good idea to use a phone without camera stabilization !!

Important:

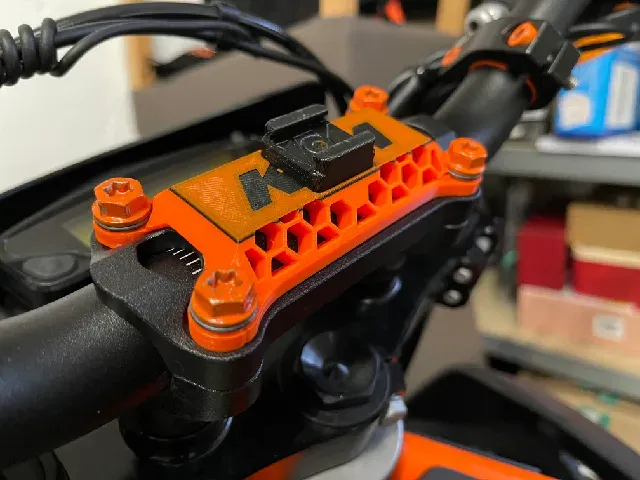

You need to put metal spacers into the four corners to maintain the force of the screws through all the brackets mounted onto the handlebar! Without them you can't torque the Screws to 20Nm which is a major safety issue and will lead to serious injury!

Metal spacers in my setup are M6 Steel Flange Nuts, which I drilled to fit the original Screws. But due to the thickness of the new bracket I highly recommend the 5mm longer M8×35 Screws (P/N 0035080356).

Summary of all needed Parts:

4x M6 Flange Nut

1x 8mm Drill to Drill the Nuts.

4x M8x35 Screws

1x M5 3D Printing Insert

1x M5x9 Screw

1x Loctite 243

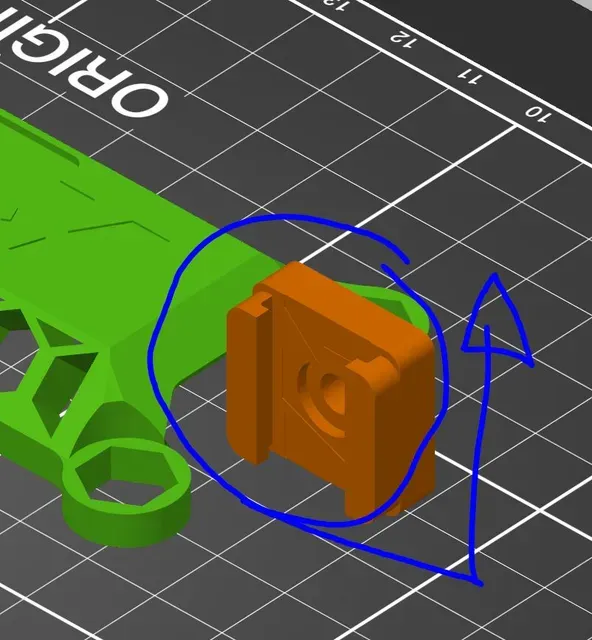

Please make sure to print the small part the way it is provided in the *.stl for optimal durability.

I Printed with 100% infill, PETG, 0.4 Nozzle and 0.3 Draft Settings of original Prusa.

It will work at least on following Models:

690 Enduro R 2019 - 2021 690 SMC R 2019 - 2021 790 Adventure / R 2019 - 2020 790 Duke 2018 - 2020 890 Adventure 2021 890 Duke 2021 890 Duke R 2020 - 2021

Have fun and ride safe!
