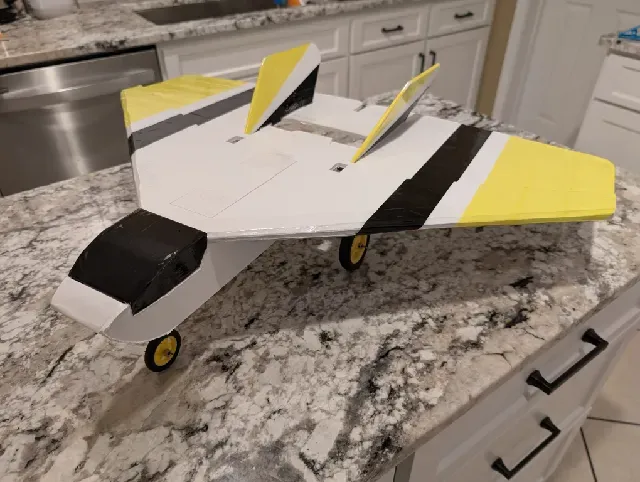

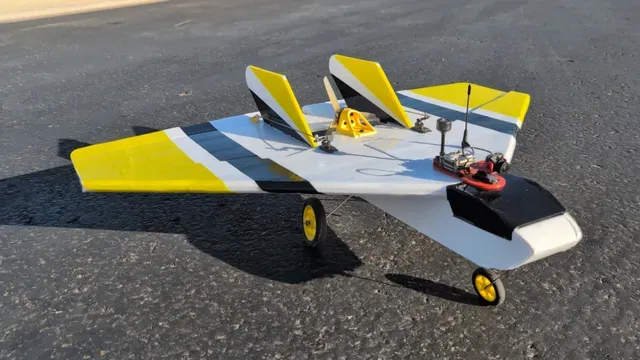

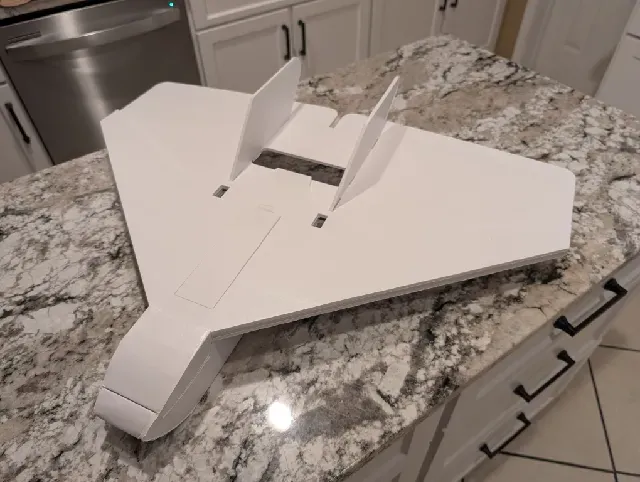

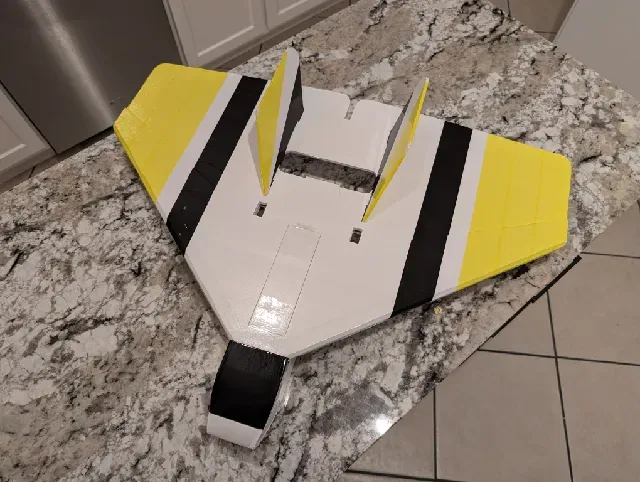

Mantaray 29 inch RC Airplane for FPV with Landing Gear

Features:

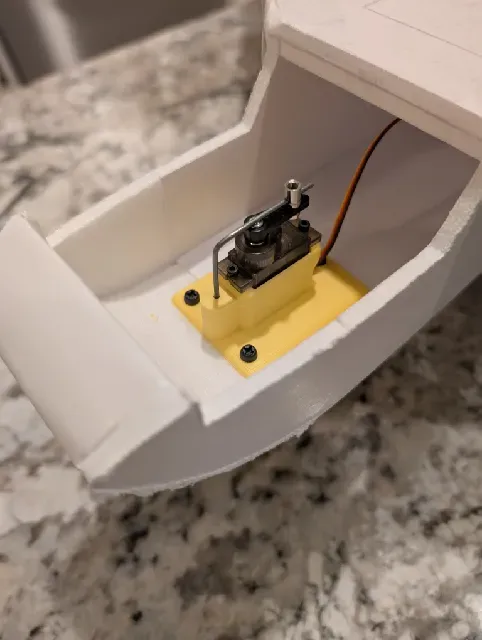

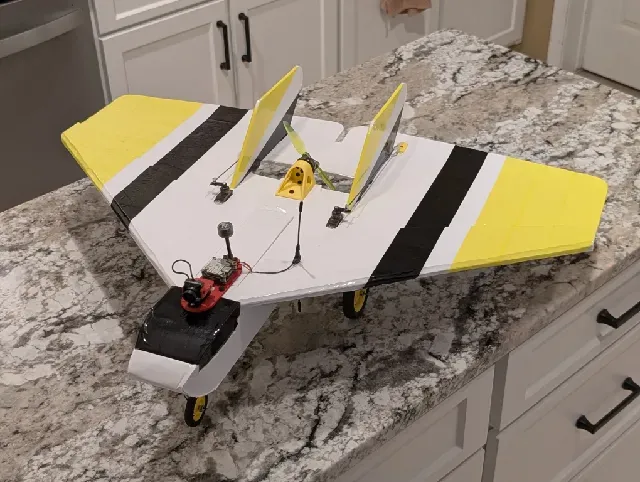

- All up weight (2200mAh 3S battery & FPV Gear): 690 grams - Wing Span: 29.1 inches (740 mm) - Steerable Nose Wheel - DJI Camera Platform - 3D printed Motor Mounts, including Wheels and Tires (TPU) - Wire Landing Gear - FULL PDF files for 5mm Foam Board (Tiled PDF for A4 and US LETTER) List of additional parts can be found here:

- Three sheets of 5mm Foam Board - 1.5 mm Diameter Wire for control and tail wheel: https://amzn.to/4i7QV3t - Main Landing Gear Wire 2.3mm diameter: https://amzn.to/3QLmBjT - Servos: X3 - MG90D (metal gear digital) https://amzn.to/3CTAYiA - Motor: - Emax ECO II 2306 - 2400kv https://amzn.to/4jtLY5P - 5x3x3 props: https://amzn.to/413wEFr - 2200mAh 3S Lipo - 30 AMP 32-bit ESC: https://www.getfpv.com/v-good-rc-32-bit-30a-2-4s-brushless-esc-for-rc-airplane.html - Camera - DJI Vista / Link: https://amzn.to/49ryz9t - Goggles - DJI FPV Goggles: https://amzn.to/49ryD9d - 4x1mm Carbon Strip for Wing Bracing - EZ-Connectors: https://amzn.to/3CNAYRj - Optional 180 degree digital servo for camera pan: https://amzn.to/3PqgLDP - Colored Packing Tape: https://amzn.to/4jf8nVa - 3M 25mm long nylon bolts: https://amzn.to/4jyWv0o - 3M nylon nuts: https://amzn.to/3CpkRZN Printing Settings:

- I used Overture Matte PLA: https://amzn.to/3wxdw7p - 3 wall layers - 20% in-fill - 0.2mm layer height - Print the Tires in TPU with 2 wall and 0% in-fill This builds very similar to the D2 Delta Twin model – check out the detailed build video https://www.printables.com/model/1199182-d2-delta-twin-rc-plane-fpv-platform

*Please reach out with questions. I would love for you to share your makes here.

Thank you!
