Taz 6 to Taz Pro S Updated X Carriage - adjustable tension

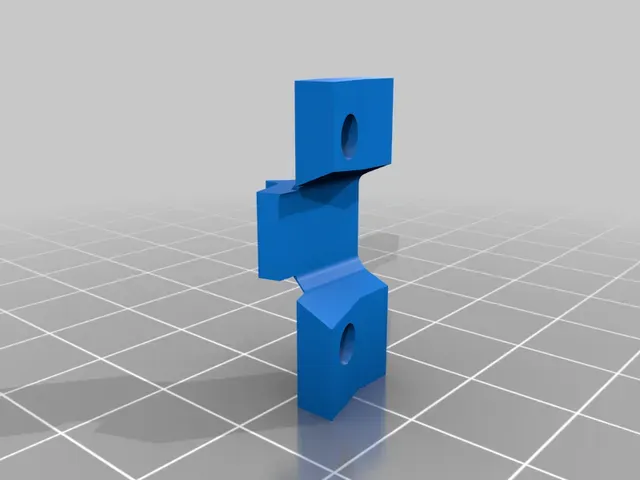

This is an updated X carriage for Lulzbot Taz 6 which does away with the unreliable clamping system for the x belt and instead uses the design from the newer Taz Pro series printers. This allows for tension of the x belt to be adjusted incrementally. I've included all needed STL files so you dont have to download from lulzbot. You will need to follow the instructions below to assemble and will need some hardware and m3 inserts.

If you reuse the inserts from the original x plate you should just need a few m3 bolts:

1 Gather Parts

1x- [HD-BT0128] M3 x 6 Bolt, FHCS Black-Oxide 4x- [HD-BT0137] M3 x 8 Bolt, BHCS, Black-Oxide 1x- [HD-BT0185] Black-Oxide M3x16 SHCS 5x- [HD-WA0038] Black-Oxide M3 Washer

1x- [AS-PR0143] X-Carriage sub assembly

1x- [HD-BL0032] GT 3 Single Sided Neoprene Belt - 1164mm by 6mm 2x- [HD-BT0043] M3x35 SHCS 1x- [PP-IS0102] X-Belt Tensioner with Inserts 1x- [PP-GP0379] X Tensioner Clamp

https://ohai.lulzbot.com/project/x-carriage-assembly/taz-pro-s/

Print Settings

Printer Brand:

LulzBot

Printer: TAZ 6

**Rafts:**

No

Supports: No

**Resolution:**

0.2

Infill: 25%

**Filament:** generic ABS Black

Category: 3D Printer Parts
