Prusa Core One Improved Telescopic Spool Holder

I was inspired by the Prusa Core One Telescopic Spool Holder by dancan13f , and decided to create my own improved version.

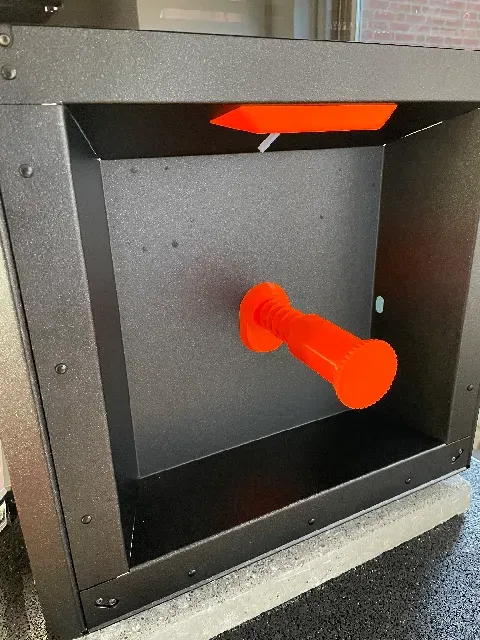

This version is flush with the side of the Prusa Core One when screwed in, which is more aesthetically pleasing.

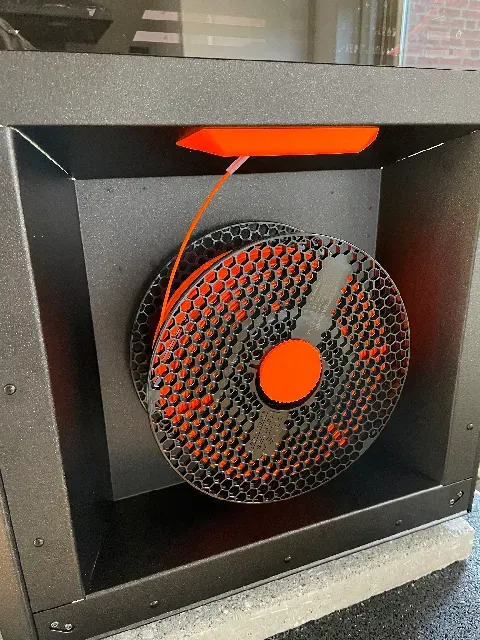

It has the shaft offset higher, so that larger spools (like from 3dk.berlin) also fit. With the default spool holder these spools would touch the bottom of the side panel. This means that the adapters from the Prusa Core One Telescopic Spool Holder design are no longer required.

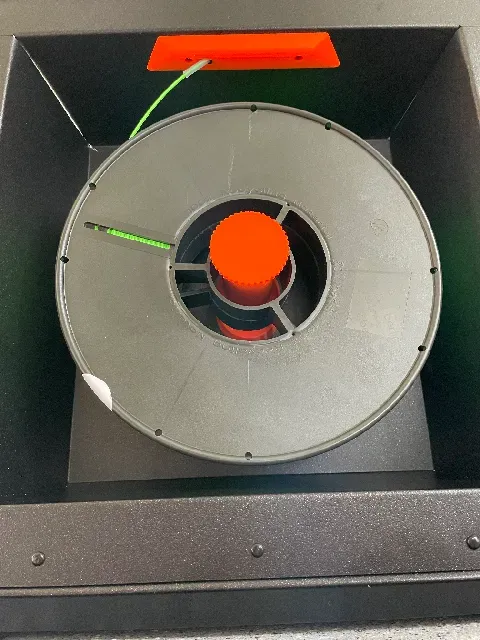

The telescopic feature allows 2kg spools fit as well.

The mounting uses the same four mounting points and screws as the Prusa Core One default spool holder.

Print settings:

- PETG - 0.2mm (structural) layer height - Adaptive Cubic infill pattern - 3 perimeters (for extra strength) - 5 bottom layers (for extra strength)
