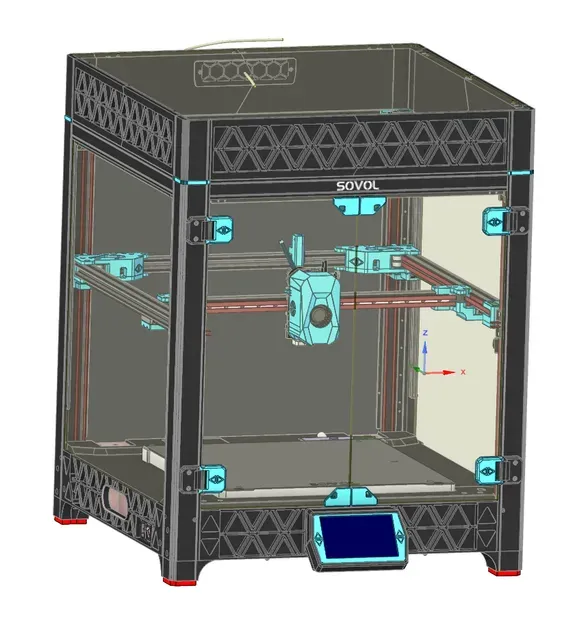

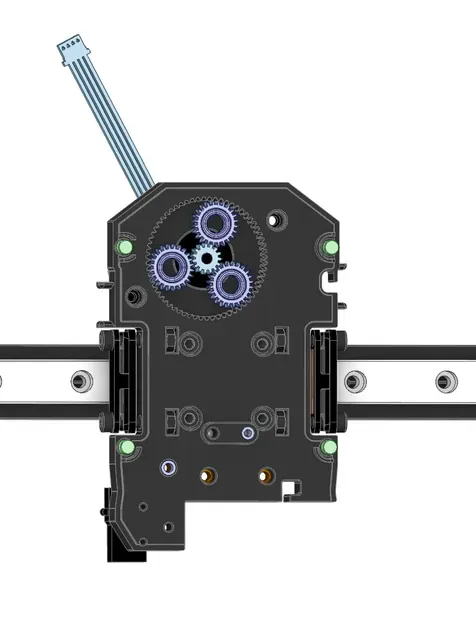

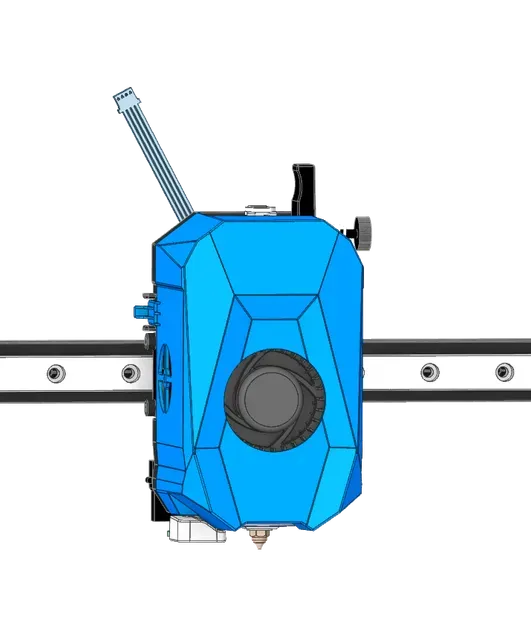

Sovol Zero Toolhead X-Carriage Adapter for Sovol SV08

This custom-designed part replaces the original Sovol SV08 X carriage and lets you mount the Sovol SV Zero toolhead directly. For less than $70, you get a full-featured upgrade:

Eddy Current Probe for auto bed leveling

High-flow 50mm³/s hotend

Improved toolboard

Powerful part cooling fan ducts

And also an X endstop :D

All the features the SV08 lacks—now added affordably, without mods to the frame.

🔗 Files are free to download. Use our affiliate link http://shrsl.com/4w0r5 to buy the toolhead. It costs you nothing extra and helps support development.

📦 Bill of Materials (BOM):

Sovol Zero toolhead (includes hotend, fan, probe, toolboard)

Adapter (3D printed, see print settings below)

Screws (reuse from SV08 or match thread to Zero toolhead)

To secure the belt clips to the new X carriage you will need 4x M3x12mm 4x M3 Nuts 1x M2.5 Nut 1x M2.5x40

8x 4x3 Magnets 1x M3

Heat set inserts 4x M3x4.5 OD x 4mm

Zip ties or cable clips for clean wiring (optional)

🖨 Print Settings (for adapter):

Material: ABS

Walls: 4

Top Layers: 5

Bottom Layers: 5

Infill: 30–40% Gyroid recommended for strength

For an easier mounting use the Belt helper! https://www.printables.com/model/1027579-sovol-sv08-belt-helper-for-x-carriage
