Voron 2.4/Trident Canopy mount for Big Tree Tech Smart Filament Sensor 2.0 (BTT SFS 2.0)

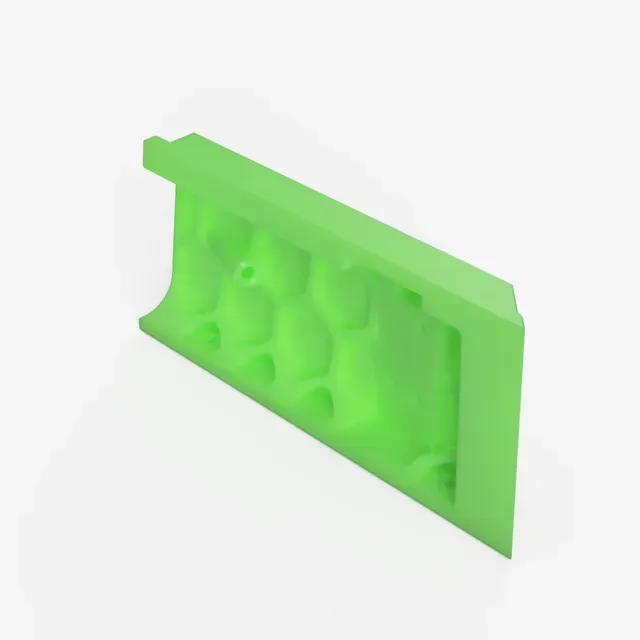

This is a corner panel remix for mounting the Bigtreetech's Smart Filament Sensor 2.0 (BTT SFS 2.0) to the Voron 2.4 or Trident canopy. The sensor is mounted at an angle and there is a pass through port for the PTFE tube, as well as a channel to route the supplied ribbon cable into the printer.

I found that mounting this on the front panel allows for easy filament loading, since the spring loaded button on the sensor is easily accessible.

You need 2 standard Voron threaded inserts and two M3x8mm socket head screws to connect Part A and Part B.

This integrates into my other remix of the Voron Canopy .

All corners are exactly the same and symmetrical, so you can use this mount on any of the 4 corners of your printer.
