Magnetic Charging Stand for iPhone, Apple Watch & AirPods - MagSafe - Four Versions

BEFORE STARTING THE IMPLEMENTATION OF THE PROJECT, READ CAREFULLY THE ENTIRE DESCRIPTION AND VIEW THE PHOTO GALLERY !!!

Hello Everyone

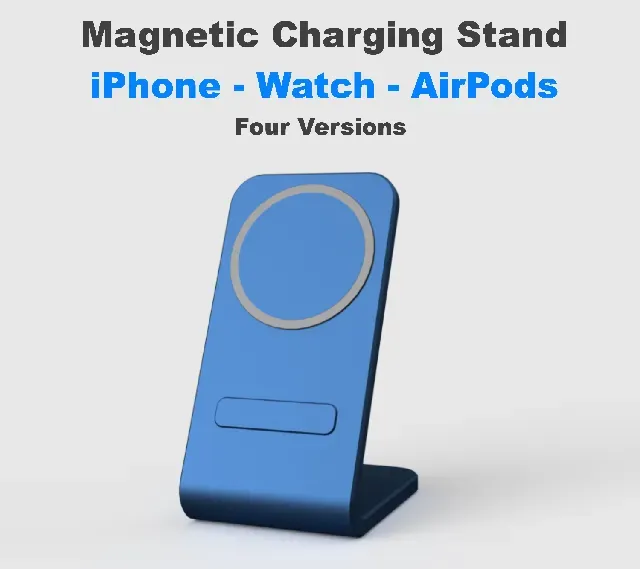

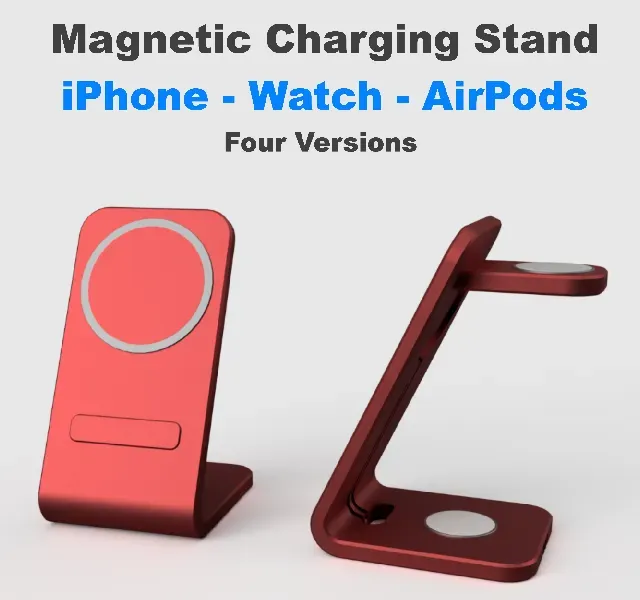

I designed a stand for Apple devices such as the iPhone Pro Max Series, Apple Watch, and AirPods Pro . The stand uses a MagSafe charger for the iPhone and a magnetic charger for the Apple Watch and AirPods. It is available in four versions depending on which devices you want to charge:

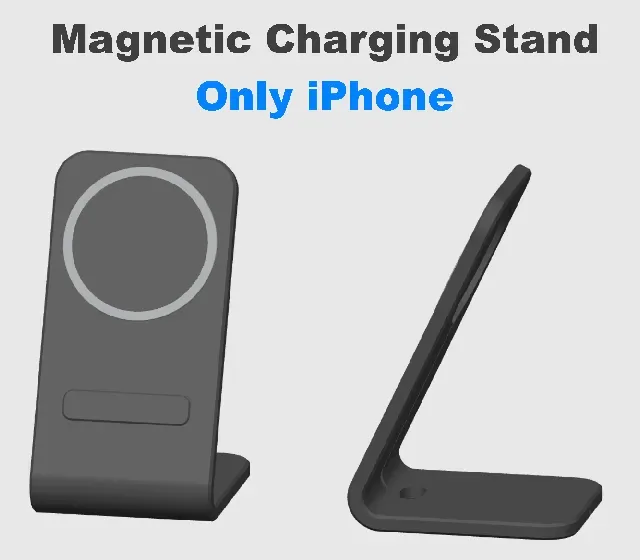

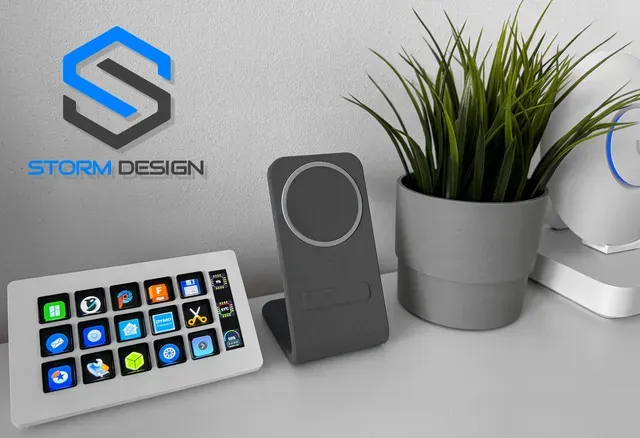

- Only iPhone - iPhone + AirPods - iPhone + Apple Watch - iPhone + Apple Watch + AirPods Additionally, I designed a coloring overlay for the MagSafe charger to make the whole setup look more cohesive, as well as a cable organizer for setups using two or three chargers. The Stand features built-in grooves for easy cable management. There are holes on the bottom of the stand to allow the installation of non-slip silicone pads (maximum diameter: 8 mm, recommended height: 1.5 mm), which guarantees stability on any surface.

When you complete the project, please share a photo and a comment. Thank you and have a nice day.

Update 08.05.2025 :

- For the “iPhone + Apple Watch and iPhone + Apple Watch + AirPods” versions, I’ve also included optional two-part models - a separately printed Apple Watch Dock . Glue is required for assembly.

IMPORTANT – PLEASE READ :

- In this project, I used original Apple magnetic chargers in the latest version with a USB-C port and a 1-meter nylon-braided cable. Charger model for iPhone – MX6X3ZM/A, and for Apple Watch and AirPods – MT0H3ZM/A. ONLY THESE MODELS ARE COMPATIBLE WITH THIS PROJECT!!! (The previous version of the MagSafe charger is larger in diameter and thicker, and the cable exiting the charging module has a diameter of 4mm, compared to the new version where the diameter is 2.8mm. In the case of the magnetic charger for the Apple Watch and AirPods, the previous version is also thicker and the cable has a diameter of 4mm, compared to 2.8mm in the new version.)

- The stand was tested only with iPhone Pro Max Series phones, versions 15 and 16, with and without a case. With the Apple Watch Ultra, but in this case, it will also fit other versions. However, the base of the stand is designed for charging AirPods Pro. (Due to the protruding camera bump, I cannot guarantee compatibility with smaller iPhone models - If You get a chance to test the stand with smaller iPhone models, please let me know if it's compatible. I'll update the description accordingly. Thank You!)

- Printer and Filament Calibration is Critical. If the printer and filament are not properly calibrated, problems may occur during assembly or even model damage. Automatic calibration available in printers may not provide the dimensional accuracy required for this model, so it must be done manually. If you don’t feel confident, simply do not proceed with this project.

- The model should be printed in the position it is imported into the slicer, which means the stand should lie on its side. Recommended print settings are provided at the very end of the description.

- To avoid damaging the model before mounting the iPhone, Apple Watch, and AirPods chargers, be sure to verify the hole dimensions against the slicer values. The diameter for the iPhone charger should be 55.8mm and 28mm for the Apple Watch and AirPods. Cable slot width is 3mm.

- Printing and using the round coloring overlay for the MagSafe charger is not required. It serves a purely visual purpose. If you decide to use it, mount it with double-sided adhesive tape, preferably on a polypropylene base, which usually has a thickness of 0.090mm to 0.150mm. Four small square pieces placed crosswise along the edge are enough (See Photo Gallery) . I tested this solution with iPhone Pro Max models 15 and 16, both with cases, and charging worked at maximum power—15W for version 15 and 25W for version 16. I also did not observe any significant heating of the phone or charger. How to Print a Stand ? :

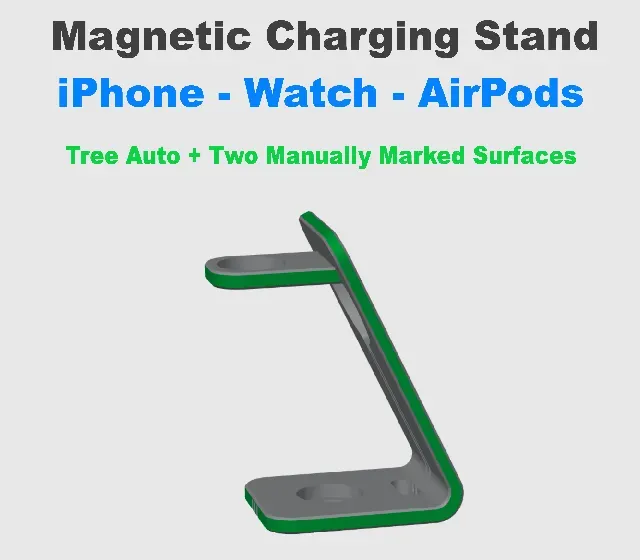

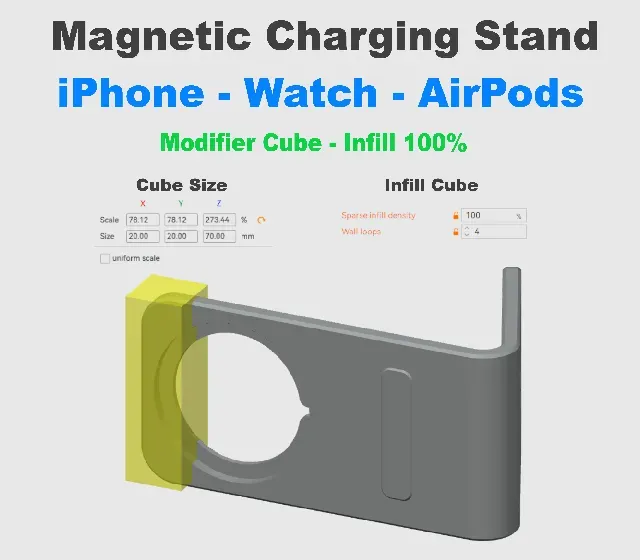

- Material : Recommended : Glitter - Matte - CF addtive - Layer Height : 0.2mm - Wall Loops : 4 - Bottom Layers : 4 - Top Layers : 4 - Infill : Stand - 20% + Modifier Cube - 100% - The location of the modifier cube and its size are shown in the Photo Gallery - Remember that the modifier cube must have the same number of wall loops as the model - The 3MF file contains a modifier cube - Support : Tree Auto + One / Two Manually Marked Surfaces to Generate Additional Supports - See Photo Gallery - For easy support removal you can use the "On Build Plate Only" function - Removing the supports will then only take you a few seconds - Brim : No How to Print a Color Overlay for MagSafe ? :

- Wall Loops : 2 - Initial Layer Height : 0.1mm - Height of the Next Layer : 0.1mm
