Arduino PS2 XInput Adapter

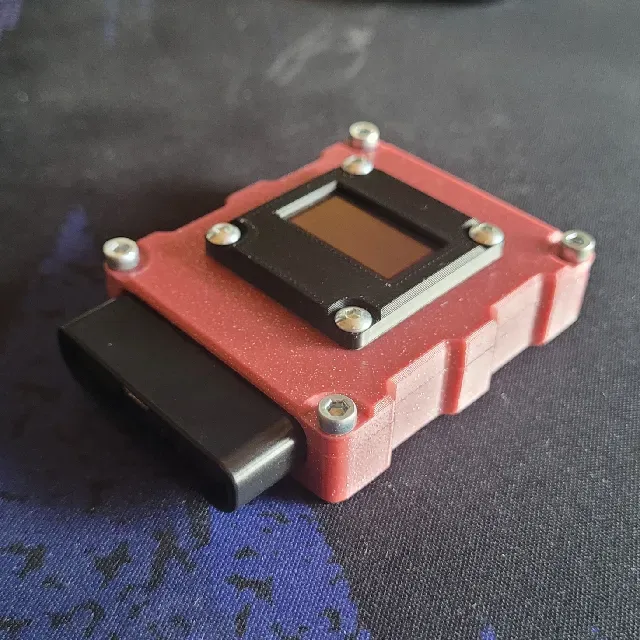

This model is a case I recently designed to house an adapter that allows PlayStation 2 controllers to be used as standard XInput devices on any PC, without extra software!

The adapter supports hot plugging and offers simple display output to show when a controller is connected. The button in the back is required for flashing the Arduino after flashing an XInput sketch; more information on this here .

Required Hardware

- Arduino Pro Mini - Microswitch to reset the Arduino - PS2 controller extension cable (you'll need to harvest the socket from this cable to solder its wires to the Arduino) - 0.96in display - 8 M3 screws, ideally M3x6 - M3x10 screws for the outer 4 screws are fine, but use M3x6 screws for holding the display bezel, since the screws could otherwise interfere with the Arduino or the wiring Printing

- PLA works great, I expect other non-flexible materials to work too - Enable supports on the display bezel and the top part of the case - I used Recycling Fabrik PLA Funkelnde Kerze for the body, Bambu PLA Basic Black for the display bezel and button Notes

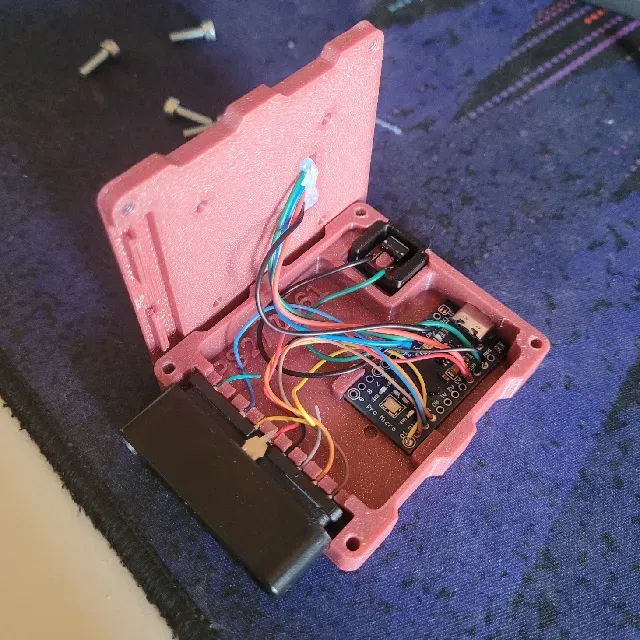

- Hold the Arduino in place using hot glue - The button, the display, and the PS2 controller connector are clamped into place; no glue is strictly necessary Arduino Sketch

Find the sketch, a diagram for soldering, and further information on the project here !
