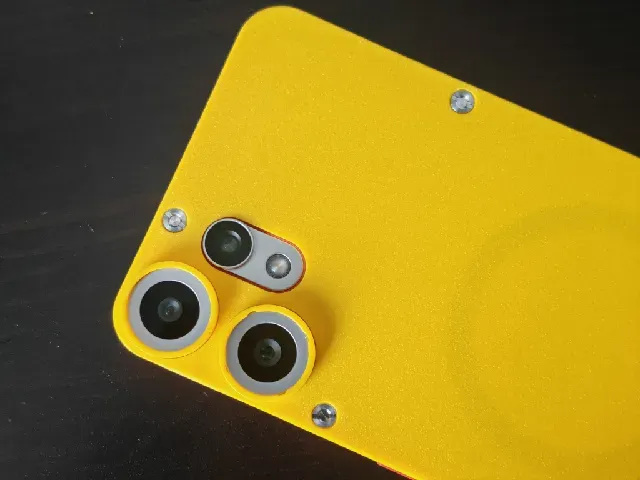

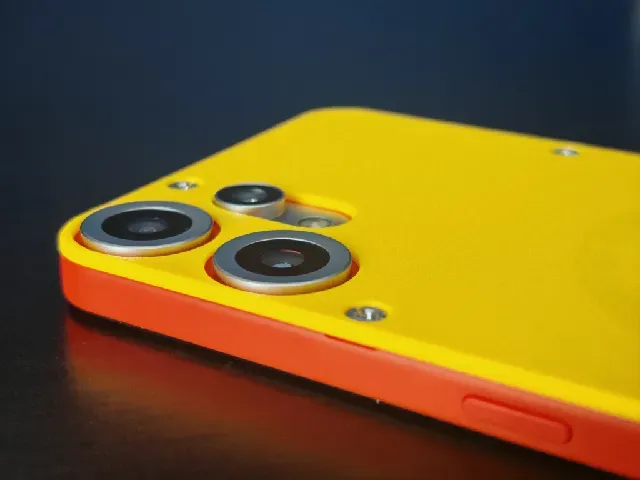

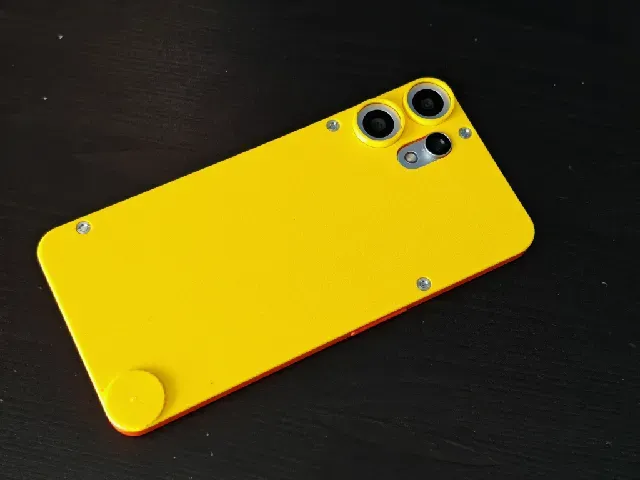

Optimised CMF Phone 2 Pro rear case+accessory disc+magsafe+lens mount

The supplied files for the universal case from CMF and Printables are a good starting point, but not fully designed for 3D printing, as they are modifications of the injection moulded part design. After lots of trial and error, I have settled on a design for a very easy to print rear panel, with accessory disc, lens mount and magsafe option.

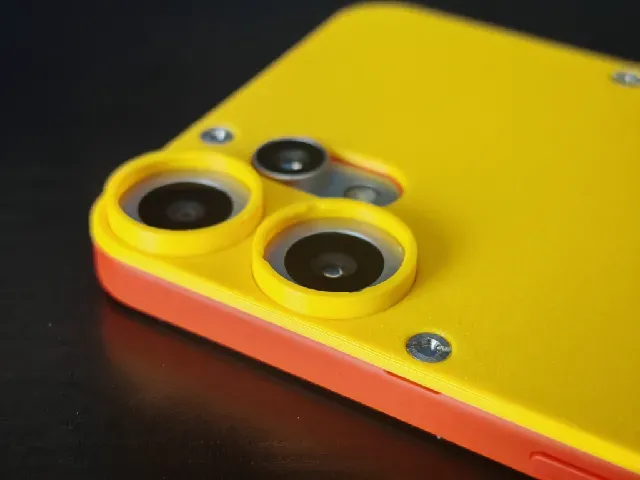

- Super easy print with flat panels, chamfers, and no overhanging filets. - Minimal support needed - just screw holes - Screw holes work great with the screws that come on the CMF Phone 2 Pro - No accessory disc recess - included printable alternative. - Lens mount that can be added without glueing I found that the accessory disc included with the phone is so thin with a short thread, that a printed case that was thin enough to be used was incredibly weak and not practical.

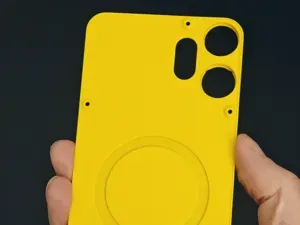

For the magesafe one - pause at layer 20 (0.2mm layer height) and stick the magnets in. They'll be covered by a final layer.

I used these magnets: aliexpress.com/item/1005005368496131.html?spm=a2g0o.order_list.order_list_main.5.35891802lvEmgO

Make sure to stick them the right way, peel off the square blue plastic side first.

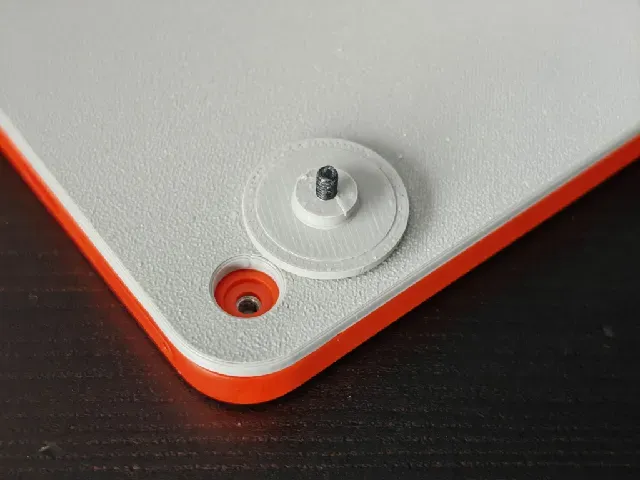

EDIT: Added new improved accessory disc - 2 parts and uses a M2.5x6mm screw. Push fits together but a drop of superglue will make it solid.

Included files:

- Rear for magsafe - Rear without magsafe - Lens mount - Accessory disc
