Blocky Iron Sights -- Barnacle -- Foam Dart Blaster -- Picatinny Rail

Blocky Iron Sights (combined in one piece) -- Barnacle

for foam dart blasters with picatinny rail.

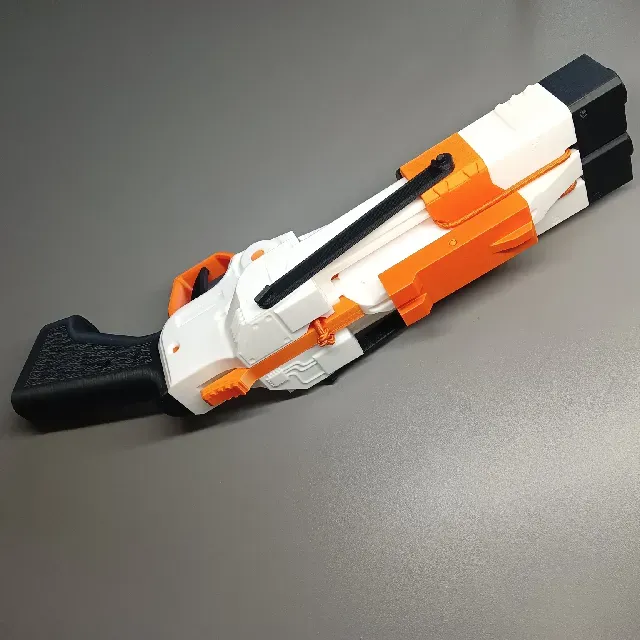

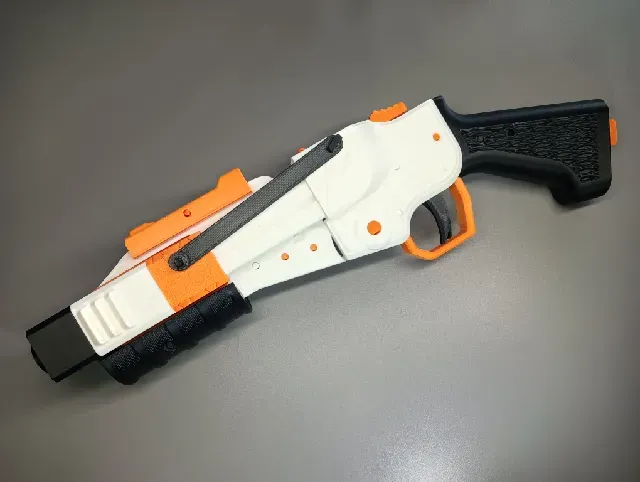

I made these low profile, blocky style and clearly visible iron sights for my Barnacle.

It's a bit of a loose fit at my Barnacle (but it's a good fit on many other picatinny rails and I wanted it universally applicable). I put a small piece of 2mm crafting foam between the picatinny and the sights to avoid wiggling. That works great for me.

---------------------------------------------------------

The files are already pre-oriented.

It needs approx. 20g of filament.

My print settings for PLA: 0,2mm layer height 3-4 walls 7 top and bottom shell layers 15-20% gyroid or cubic infill (print with outer brim if you have poor bed adhesion) No supports needed
