Knipex Pliers Wrench Multiboard perpendicular mount

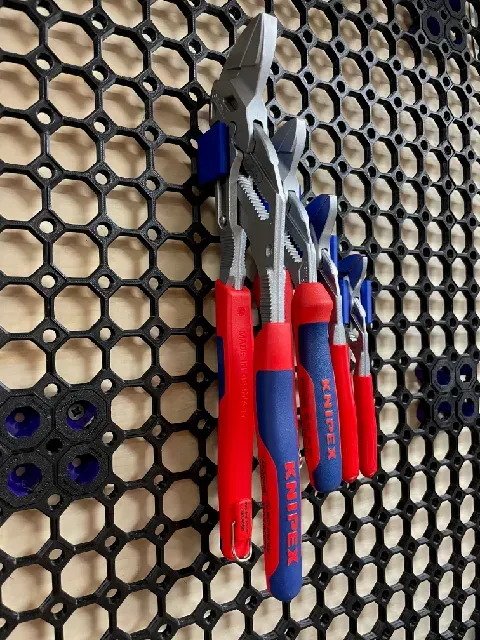

Multiboard mount for Knipex Pliers Wrenches in various sizes that positions the pliers perpendicular to the wall. This allows the wrenches to only use a single 25mm row of space on the multiboard.

Files are available for 4 sizes of the wrenches. Each wrench has a different width and Knipex appears to only have 2 sizes of the “button”. The slot for the button is angled so it pushes the wrench towards the wall. Due to the multiboard directional snap being flat on the bottom, the heavier wrenches sometimes pull the snap out of the multiboard if you pull the wrench away from the wall. If you lift the wrench vertically the snap remains in place.

STEP files are also uploaded so you can modify the width of the slot if you find it too tight with a different size wrench.

Model numbers used for the available mounts are:

- 86-03-125 - 86-03-150 - 86-05-180 (should work with 86-03-180 as well, but untested) - 86-05-250 (should work with 86-03-250 as well, but untested) Printed in PLA with standard Multiboard print settings:

- 0.4mm nozzle - 0.2 layer height - 3 walls - 15% infill (Gyroid) - 4 top and bottom layers STL files have proper print orientation, no supports required.
