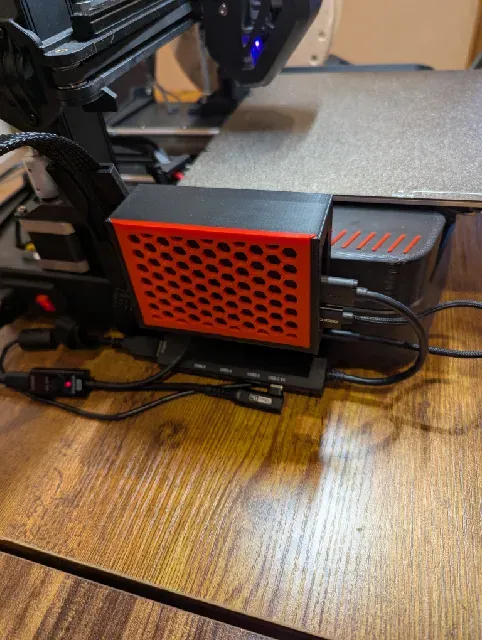

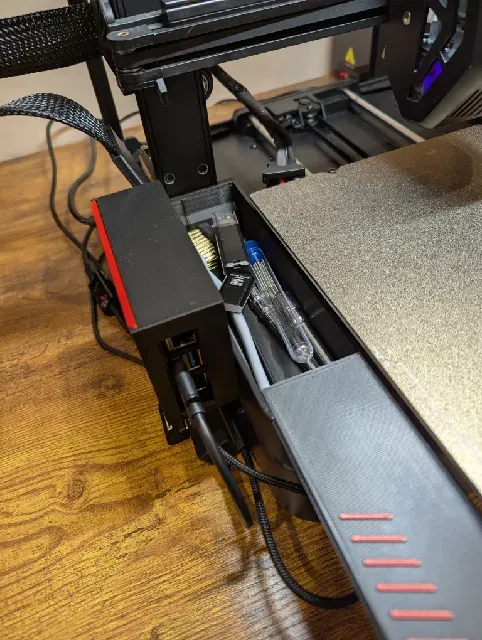

Ender 3 v3 KE / SE Storage Box with cable holder and removable Raspberry Pi 4B case

I've been using the Storage Box with Cable Holder for Ender 3 V3 KE/SE for a little while now, and recently added a Raspberry Pi 4B to run Octoprint. I wanted to attach the Pi to the printer to make things a little neater, but couldn't find an option that worked well for this setup.

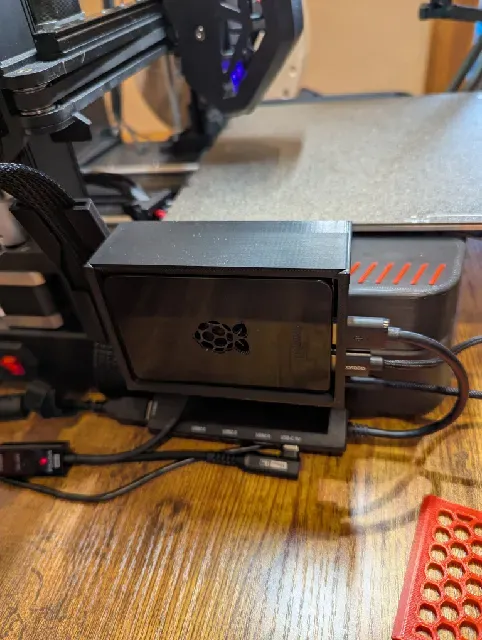

This model adds a removable case for a Raspberry Pi 4B. I sized it to fit the case I had for my Pi, which is the CanaKit Raspberry Pi 4 Case ( https://www.canakit.com/raspberry-pi-4-case.html?srsltid=AfmBOoqjUneTjlFaqdlAyq320hklRw7g-bEsOl33j2aZf5xqlmkZWULkcNs ). The enclosure measures 96x64x32mm and would probably fit other similarly sized cases.

I also had trouble getting the original model to fit on my gantry, because it was slightly too big, so I increased the size of the box by 1%, which leads to a perfect fit in my case. My gantry measures 40mm for reference. You'll need to resize the lid to fit. I found increasing the length by 1% and leaving the width the same led to a really nice fit.

I printed the case on the largest side with tree supports. The supports can be a little hard to remove from the slots, but adding support blockers on the sides of each slot when slicing helps.
