One Month Pill Box

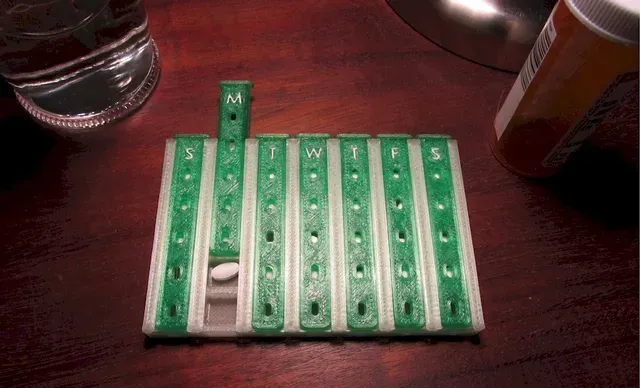

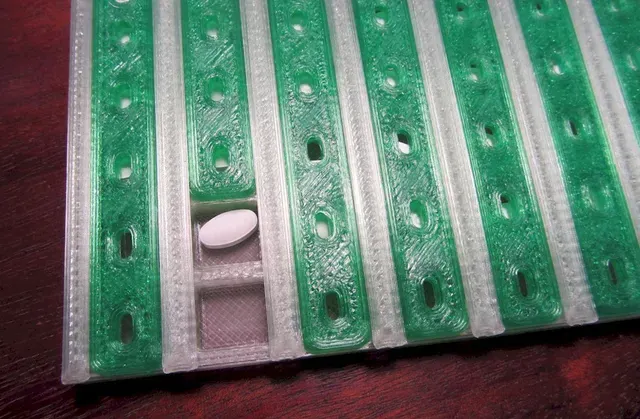

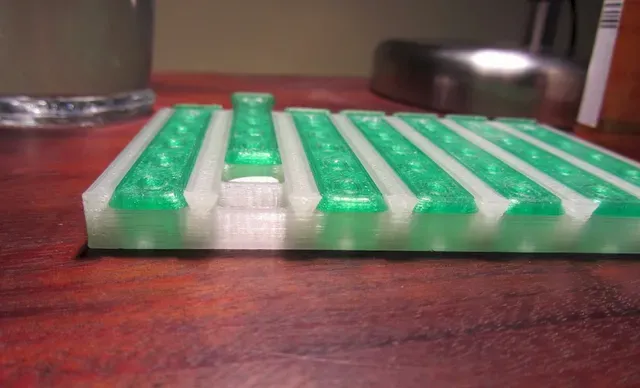

You can store up to 5 weeks of antidepressants in this cheery little pill organizer! The sliding lids, labeled with the days of the week, have view ports for seeing if pills have been taken, and also have friction locks to hold them shut. You start taking your pills from the bottom so you can slide open each lid to dump out just one pill at a time.

There is a slim-line version for small pills and a deep-dish version for horse pills.

Instructions

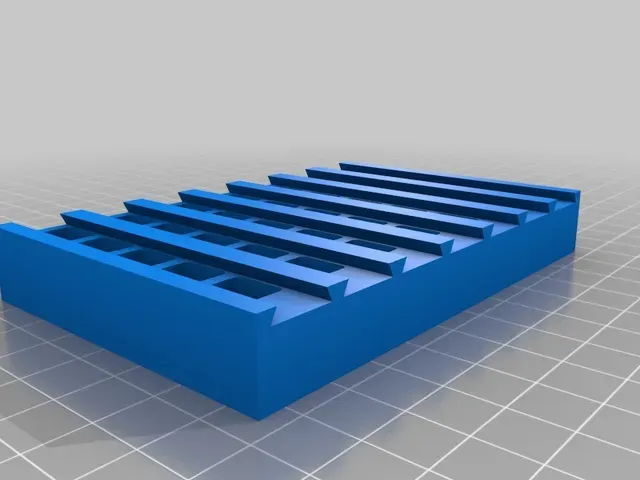

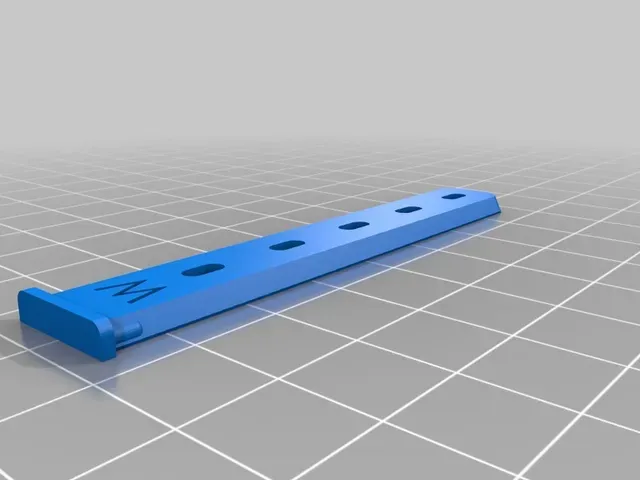

All parts were printed in PLA, 0.2mm layer thickness, 3 perimeters and 20% infill. Print one main pill compartment (pillbox.stl for slim-line, pillbox_deep.stl for deep-dish), 2 "S" lids (Sat., Sun.), 2 "T" lids (Tues., Thurs.) and one each of the "M", "W" and "F" lids.

The lids may be a little tight at first, but work them back & forth and they will loosen up. All parts can probably be scaled by up to 25% or so for larger pills.

The visibility of the letters on the lids will vary with your filament color. I worked a little paint into the engraved letters on this one to increase the contrast.
