M8 × 1.25 mm Screw and Nut (3D Printable, ISO Metric Thread)

This model includes:

✅ 1x M8 × 1.25 mm ISO thread screw ✅ 1x M8 nut

Both parts are designed to be 3D printed and can be used for:

Thread calibration (check your printer tolerances)

Mechanical prototypes

Educational purposes

Practical test fittings

Dimensions

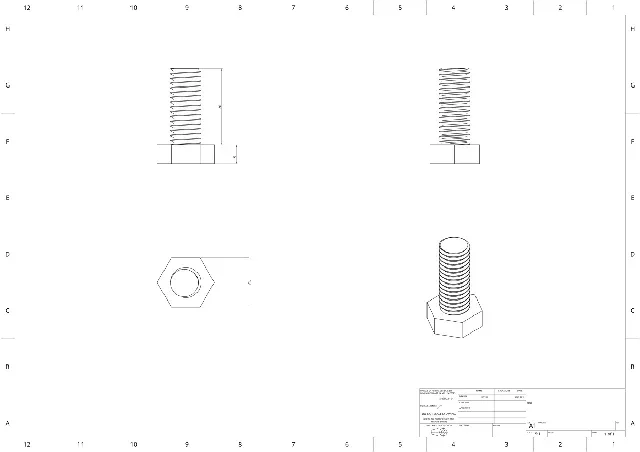

M8 Screw:

Outer diameter (head or max feature): ~14.0 mm

Thread pitch: 1.25 mm

Thread length: ~25.0 mm

Head diameter: ~14 mm

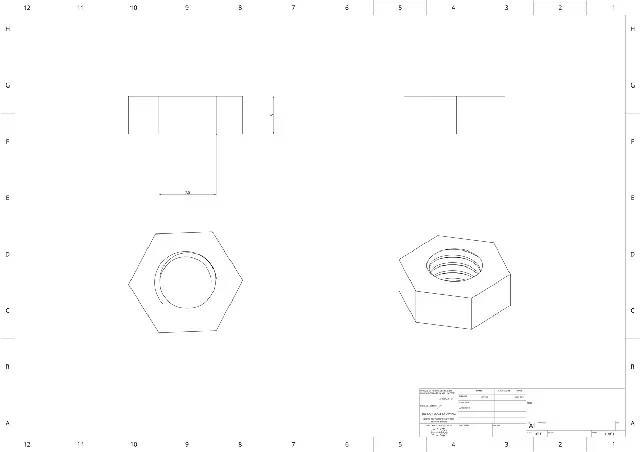

M8 Nut:

Outer diameter (flats or round): ~14.13 mm

Height: 5.0 mm

Inner diameter (thread core): ~6.75 mm (expected for M8 × 1.25 thread)

Print Settings

Layer height: 0.1–0.2 mm

Infill: ≥50%

Supports: Not required

Recommended materials: PETG, ABS, ASA → PLA works but may wear faster

Tolerance tip: You can scale by ±1% if the fit is too tight or too loose.

Notes

These parts are intended for functional testing and for tuning your printer to produce precise threads. Not intended for high-load or permanent fastening.

For the best results, use a fine layer height (0.1–0.15 mm) and ensure your printer is well-calibrated.
