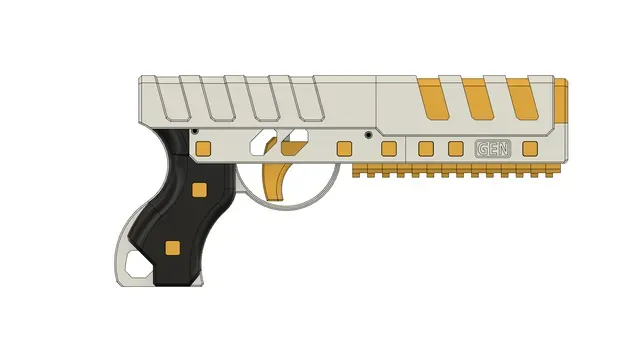

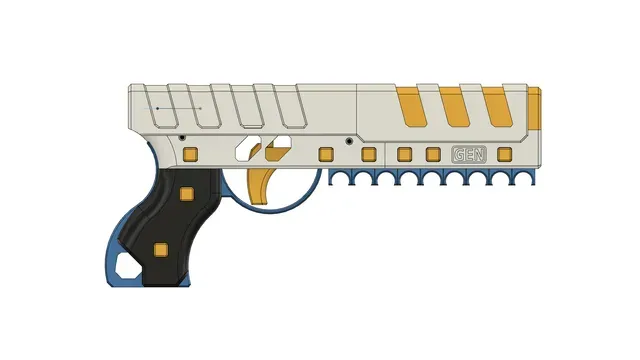

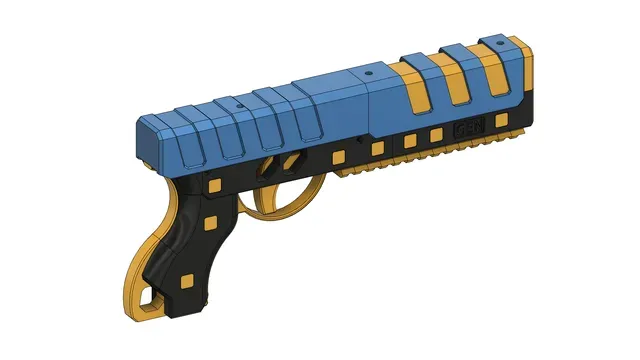

X-Shot Micro Reshell 9 v1.2 - Top Sled Action

This is a 3D-printable shell from the GenCo Microwerks for the X-Shot Micro, a tiny powerhouse of a blaster. All the hardware you need is already provided by the Micro itself. You just need to print parts in the colors of your chosing and you’re good to go to take a screwdriver to it.

The 9th reshell features a top-sled prime, because I haven't done that yet. It also comes with an optional inline halfdart clip in the barrel, like ye olde rscb blasters, except without the need to swing the blaster down to seat the next dart. That happens automatically here. The barrel can hold 3 darts as onboard-storage.

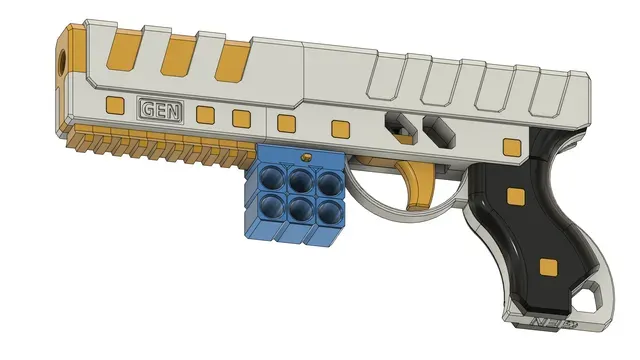

The whole thing also comes with a picatinny rail on the bottom, for whatever attachment needs you have. I have included two dart storage attachments. I've additioncally included a non-inline clip variant, as well as a T-pull type sled, and a barrel with an O-ring groove on the Micro end.

---

All parts can be printed on a bed of 180mm edge length. A few parts will need supports. Everything should already be in its proper printing orientation.

The assembly instructions can be found here -> https://wildwestscifi.net/x-shot-micro-reshell-9-top-sled-action-assembly-instructions

---

Changelog: v1.0 - Initial Release

v1.1 - Added an O-ring spacer, to properly sandwich it with the inline barrel.

v1.2 - Updated the inline clip barrel to be non-flick. Now you can rattle shots off without having to swing the blaster down before every shot. This also increases the performance by a few fips. - I also applied some more recent structural updates to the front of the blaster, so it slides together more sturdily.
