HORIZONTAL Print -- Talon Magazine (10/15) -- (shorter feed lips for more compatibility)

Straight Talon Mag [ 10 / 15 darts ]

--> Horizontal Print --> shorter feed lips to be compatible with more blasters (e.g. ONTOS and MULTI-TOOL) --> for Talon Magazine springs (wire springs)

This is a remix of the nice combination mod by Astropulse Sure.t Nerf Mod Talon Mag - Fully Printable - Quick Assemble/Disassemble ← [there you can also find the assembly guide]

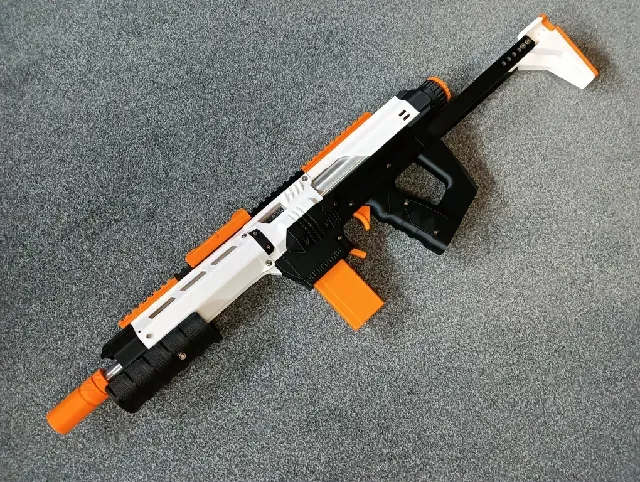

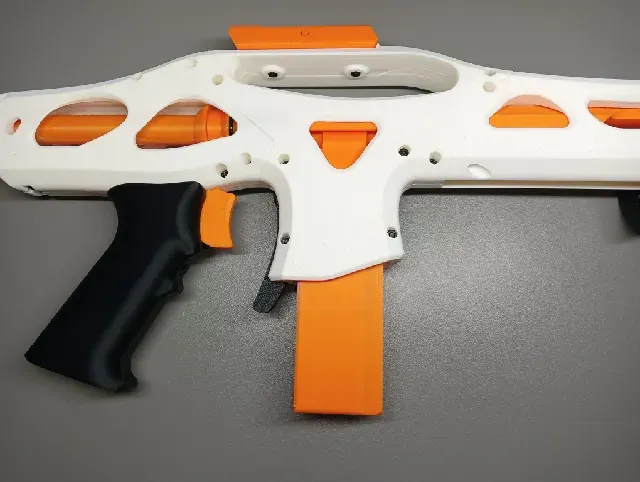

Since my MULTI-TOOL and ONTOS don't accept the original shape of the feed lips (with the ‘no-supports-needed-angle’), I modified them to a more rectangular standard shape (these unfortunately need supports). These should be compatible with even more blasters.

So if you have problems with the original horizontal printed Talon mags by Astropulse or thunkar not fitting into some blasters because of the feed lips, then this version could be the solution for you.

Horizontal printed mags slide smoother, get stuck less, and sound quieter when loading/unloading.

A big advantage of this is the print direction of the feed lips, which makes them much more difficult to break when printed horizontally.

This magazine can be assembled and disassembled quickly and easily thanks to the interlocking bottom plate and bottom cap which simply need to be inserted into a rail at the bottom of the magazine.

Click here for some more HORIZONTAL PRINT magazines for short darts

-----------------------------------------------------------------------------------------------------------------------------

- UPDATE 4.7.2025: Added a version for 15 darts. The 15-dart magazine is 232 mm long (if I'm not mistaken, it just fits diagonally on a 180x180mm print bed - and that's exactly how I pre-oriented it).

------------------------------------------------------------------------------------------------------------------------------

The files are already pre-oriented.

My print settings for PLA: 0,2mm layer height 4-5 Walls at least 5 top and bottom shell layers 20% gyroid or cubic infill

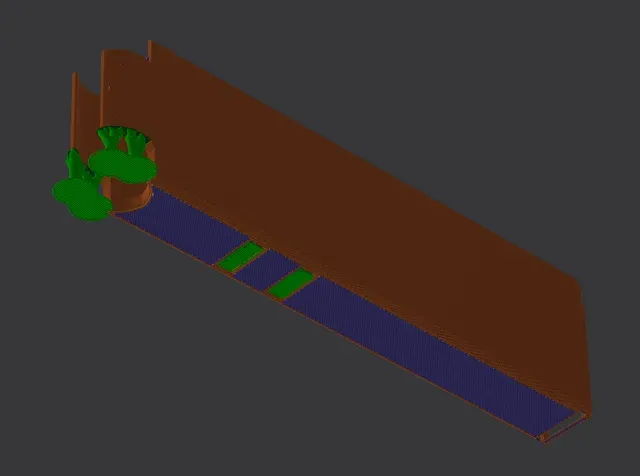

Supports needed for the feed lips and the catch notch. → Don't use supports wihtin the mag! (use support blockers there)

Thx to Astropulse, Tim O'Brien and thunkar for the files I could use for this remix.
