Compact Case 1 for Philips OneBlade - Home Edition

Introduction

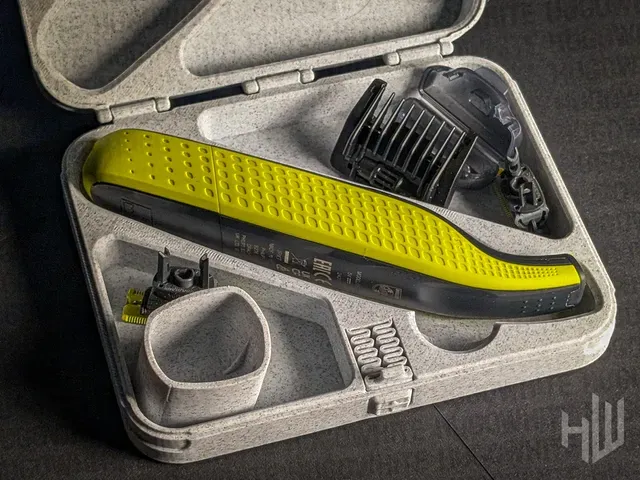

Compact Case 1 is the first model of the compact case series. This model is designed for home storage and daily use. It provides a permanent, organized countertop space for your OneBlade handle, standard attachments, and extra blades.

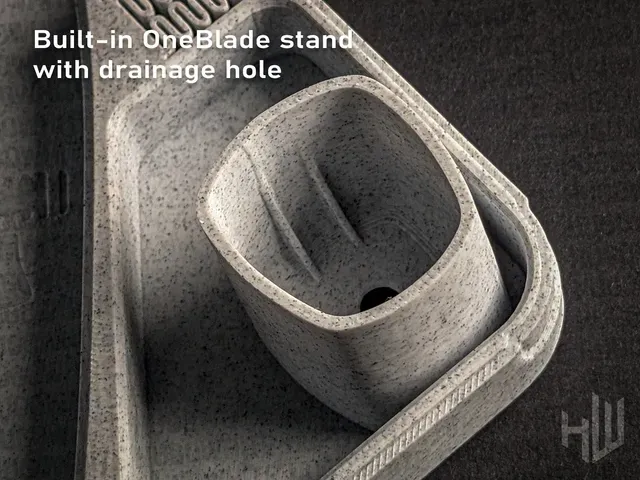

The case features a print-in-place integrated spring-loaded latch and a built-in stand. The entire model prints as one piece without supports or assembly. Print it, let it cool, load it, and use it.

Note: The current V2.0 physical model is completely unbranded. It no longer contains Philips or OneBlade logos, text, or other brand markings.

Compatibility & fit

Status

Model / note

✅ Fits

QP25xx, QP26xx, QP27xx, and QP28xx

✅ Fits

Original OneBlade and OneBlade 360 handle

❌ Does not fit

OneBlade Pro (QP65xx, QP66xx, and QP67xx)

❌ Does not fit

Multi Groom 7000 series

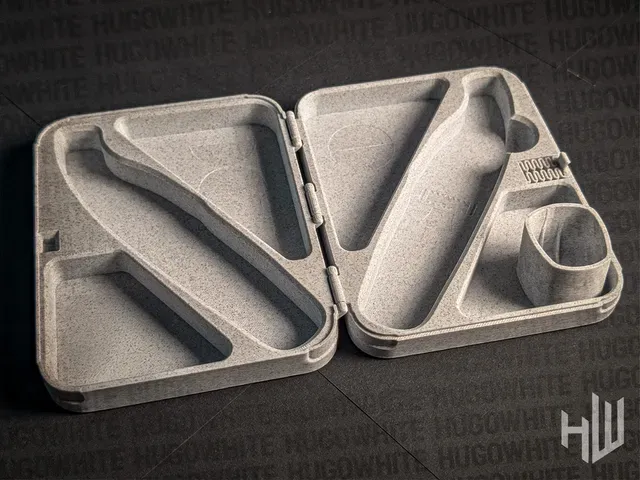

Storage details: The spacious compartments are designed to adapt to different standard accessories, extra blades, and cleaning tools. The 35° angled design maximizes storage capacity while remaining space-efficient on a bathroom counter.

Design & mechanism

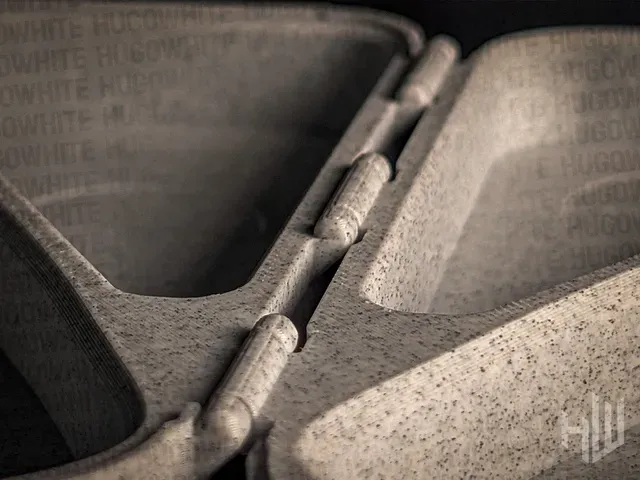

The hinge and spring-loaded latch are fully integrated into the print. The spring sits inside precision grooves that prevent lateral movement while maintaining tension. Pressing the knob raises the lid ever so slightly in the newer versions, by design.

No screws, pins, or separate springs are required.

Printing

Recommended print settings:

Parameter

Value

Layer height

0.20 mm

Material

PLA or PETG

Supports

None

Assembly

None

Nozzle

Optimized for 0.40 mm

Required build volume

Approx. 162 × 165 × 20 mm

Material shown in photos

Prusament PLA Marble Grey

First-layer quality matters for the print-in-place mechanism. Allow the print to cool completely on the bed before removing it or testing the latch. If the mechanism feels stiff initially, carefully press it a few times to loosen it.

Development & updates

- V2.0 (Unbranded): The physical model is now completely unbranded to respect intellectual property. All logos and text have been removed. Latch dimensions were updated for improved reliability (sharing the refined mechanism of Compact Case 2), and the lid now pops open automatically. An additional stand-free version has also been included for users who prefer maximizing flat storage space.
