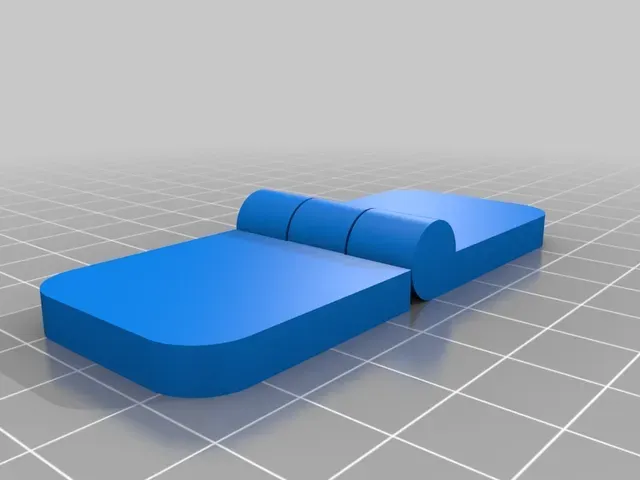

Acrylic/lexan hinge - small - glue on

Customized version of http://www.thingiverse.com/thing:2187167

Created with Customizer! http://www.thingiverse.com/apps/customizer/run?thing_id=2187167

Instructions

Using the following options:

enable_auto_pin_size = 1

resolution = 128

fastener_count = 6

bottom_pin_shaft_counterbore_depth = 2.5

fastener_margin = 3

enable_pin_shaft_counterbore = 0

knuckle_gusset_type = 0

component_color = Silver

pin_diameter = 3.0

enable_male_leaf = 1

throw_angle = 0

leaf_height = 30

bottom_pin_shaft_counterbore_diameter = 6.0

top_pin_shaft_counterbore_diameter = 6.5

top_pin_shaft_counterbore_shape = 0

fastener_column_count = 2

knuckle_count = 3

fastener_head_diameter = 7.0

leaf_gauge = 5.0

enable_female_leaf = 1

counter_sink_depth = 2.5

hinge_width = 75

enable_fillet = 1

flip_model = 0

enable_fasteners = 0

component_clearance = 0.4

fstener_head_type = 0

fastener_thread_diameter = 3.5

top_pin_shaft_counterbore_depth = 2.5

bottom_pin_shaft_counterbore_shape = 2

enable_pin = 1

Category: Parts
