Enclosure for MKS Robin Nano V3.1

This is an electronics enclosure for a custom 3d printer I am building. It houses two different control boards. In my case it will be a MKS Robin Nano Ver3.1 and Raspberry Pi 4.

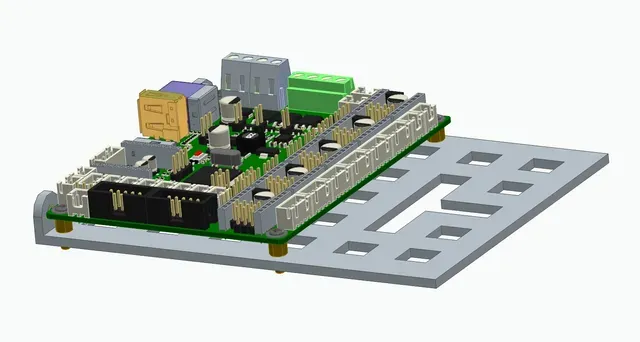

The boards sit on a panel which can be slided in and out; and and each panel is fixed with two M3 bolts to the mainframe. This provides more flexibility during assembly especially for cable bundles.

There will be a second iteration for the following improvements

- Change M5 bolts to M3 for panels; and use countersunk instead of buttonhead (aesthetics) - Use spring-lock mechanism to fix the boards in place instead of M3 bolts For durability reasons I used heat inserts to fix the screen, the electronics boards, rubber feet and the fan. You are welcome to change it to nuts & bolts. In addition the M5 nuts on each panel shall be a tight-fit. Please make sure to check the holes for your M5 nuts.

All parts are printed with PLA+ and without any supports. The final model will be printed with PETG. Other than the printed parts you will need below items for assembly

Component Quantity (eaches) Comments

M5 nut 32 to assembly the panels, can be changed to M3

M5x10 buttonhead 24 to assembly the panels, can be changed to M3

M3xH3 heat set insert 8 to assembly the boards to panels and panels to frame; can be changed to nuts & bolts

M3 nut 6 to assembly the screen to frame

M3x12 buttonhead 6 to assembly the screen to frame

M3xH6 heat set insert 6 to assembly the screen to frame; can be changed to nuts & bolts

M5x20 buttonhead 4 to fix the rubber feet to bottom panel

M3x5 flanged nut 4 to fix Robin Nano to board panel

M5xH8 heat set insert 8 to fix the rubber feet to bottom panel and fan to back panel; can be changed to nuts & bolts

M5x35 allen 4 to fix the fan to back panel

M3 male to female standoff (PCB spacer) 4 to fix Robin Nano to board panel

M5 rubber foot 4

M3x6 buttonhead 4 to fix the board panels to main frame

92x92x25 fan 1
